2. Installation

2.1 Servodrive
EDB Series Servo drive is a base-mounted type servo controller. Incorrect installation will cause problems. Always observe the installation instructions described below.
2.2.1 Storage
When the Servo drive is to be stored with the power cable disconnected, store it in the following temperature range: Between −20°C and 85°C
2.2.2 Installation sites

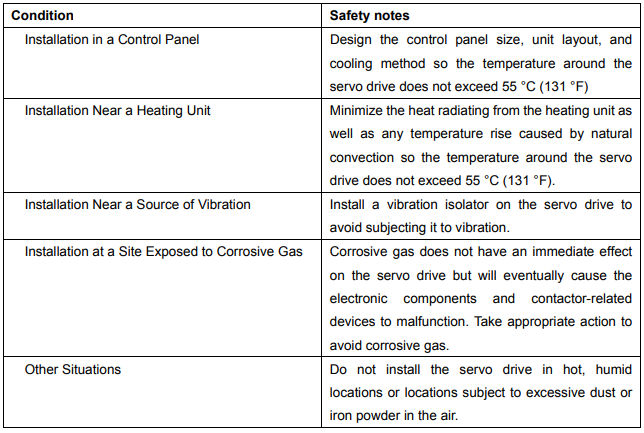

 Notes of operation installation are described as follows:

2.2.3 Installation orientation
Install the SERVODRIVE perpendicular to the wall as shown in the figure. The Servo drive must be oriented this way because it is designed to be cooled by natural convection or a cooling fan.

2.2.4 Installation method

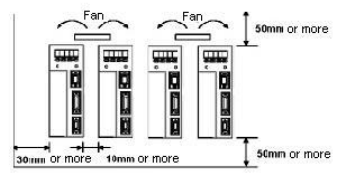

When installing multiple Servos drives side by side in a control panel, observe the following installation method:

█ Servo drive orientation
Install the Servo drive perpendicular to the wall so the front panel containing connectors faces outward.
█ Cooling
As shown in the figure above, allow sufficient space around each Servo drive for cooling by cooling fans or natural convection.
█ Side-by-side Installation
When installing Servo drives side by side as shown in the figure above, allow at least 10 mm (0.39 in) between and at least 50 mm (1.97 in) above and below each Servo drive. Install cooling fans above the Servo drives to avoid excessive temperature rise and to maintain even temperature inside the control panel.
█ Environmental Conditions in the Control Panel
1. Ambient Temperature: 0 to 55°C (32 to 131° F)
2. Humidity: 90% RH or less
3. Vibration: 4.9 m/s2
4. Condensation and Freezing: None
5. Ambient Temperature for Long-term Reliability: 45 °C (113 °F) or less
