1. Checking Products and Parts Names

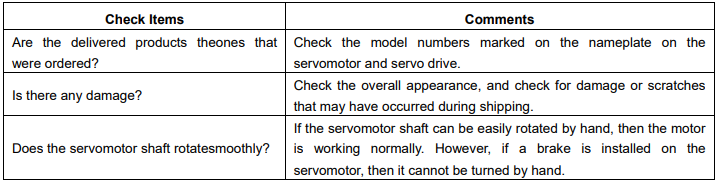

1.1 Checking Products on Delivery


If any of the above items are faulty or incorrect, contact your ESTUN representative or the dealer from whom you purchased the products.

1.1.1 Servomotor

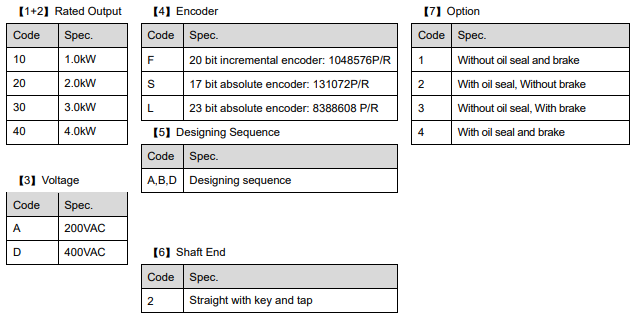

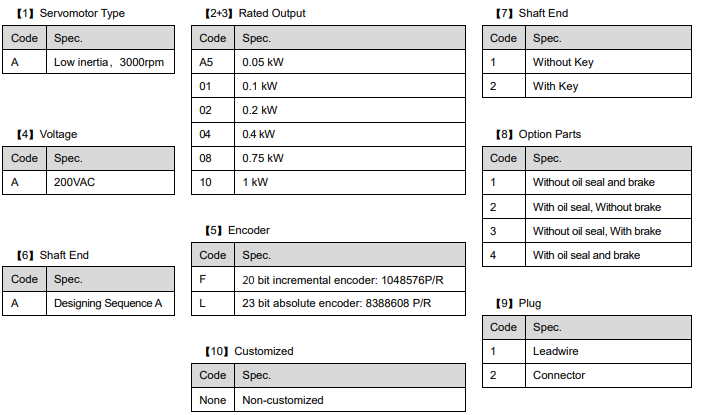

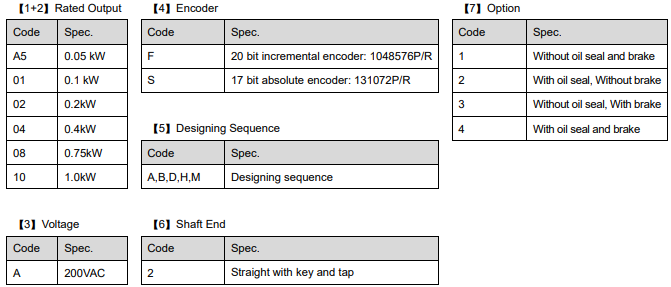

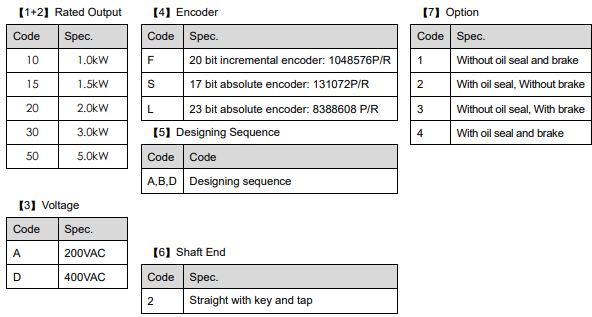

 Servomotor Model Designation

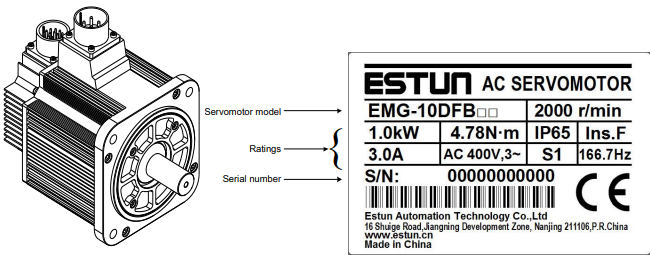

 Appearance and Nameplate




1.1.2 Servo drive

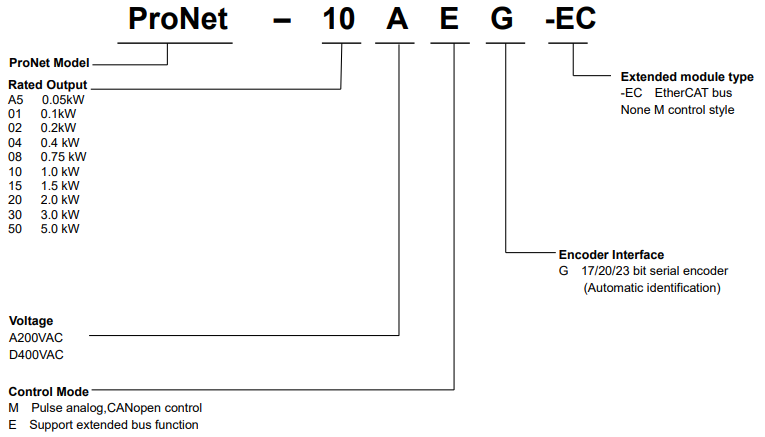

 ProNet Servo drive Model Designation

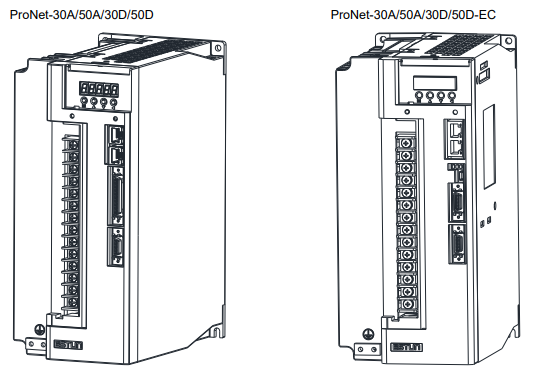

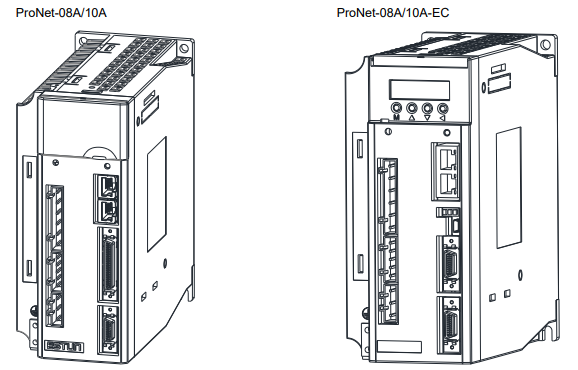

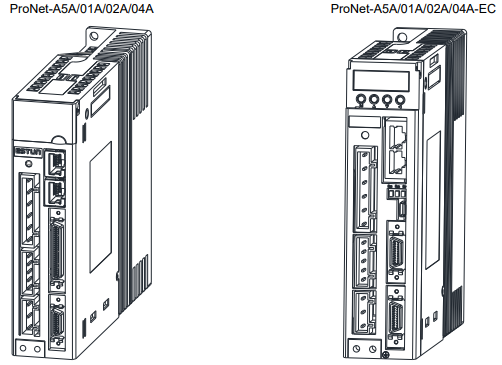

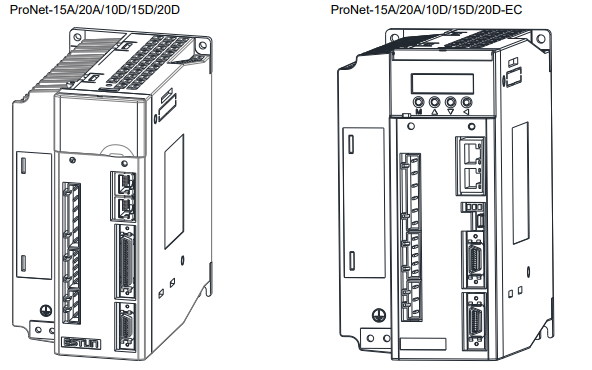

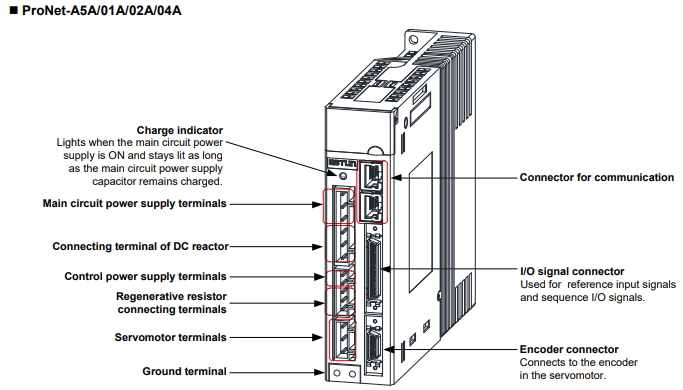

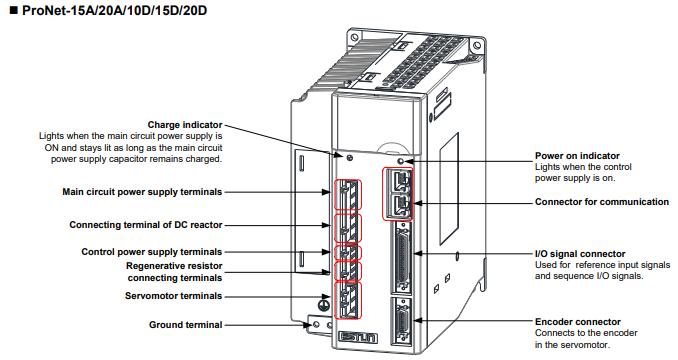

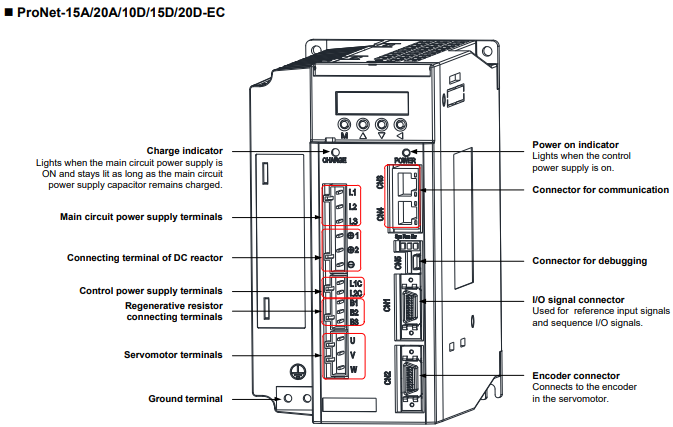

 ProNet Servo Drive Appearance

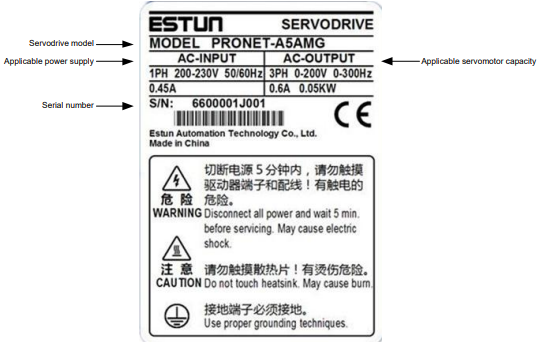

 ProNet Servo Drive Nameplate




1.2 Part Names
1.2.1 Servomotor

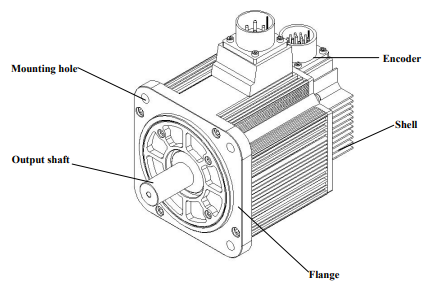

Servomotor without gear and brake

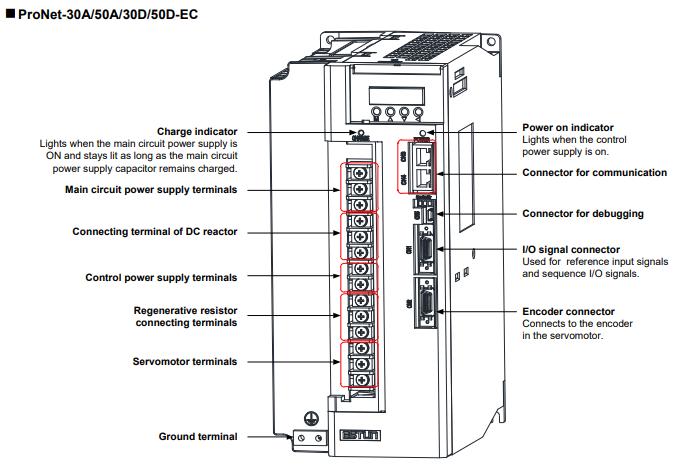

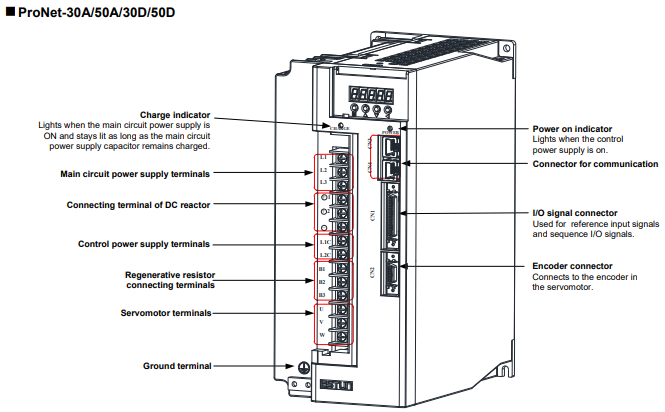

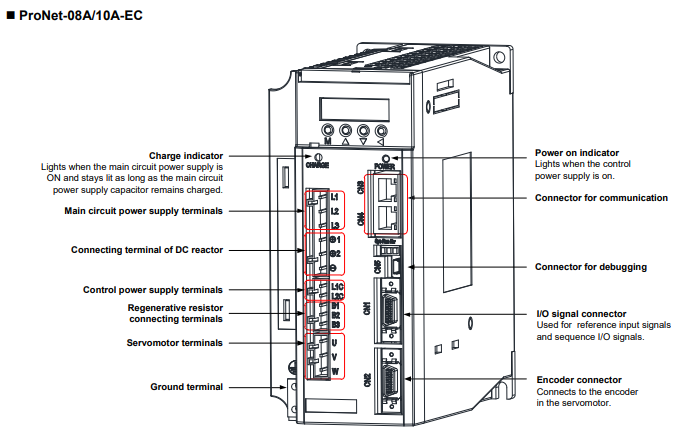

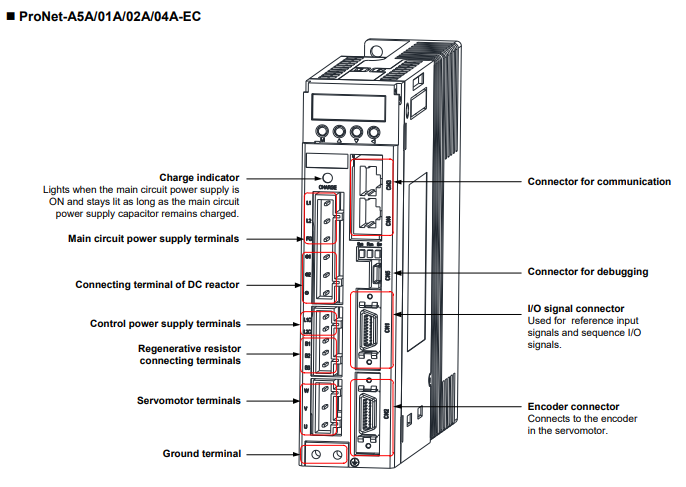

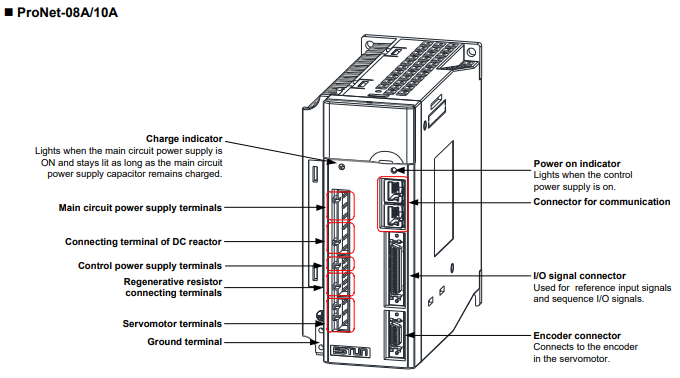

1.2.2 Servo drive
