7. Specifications and Characters

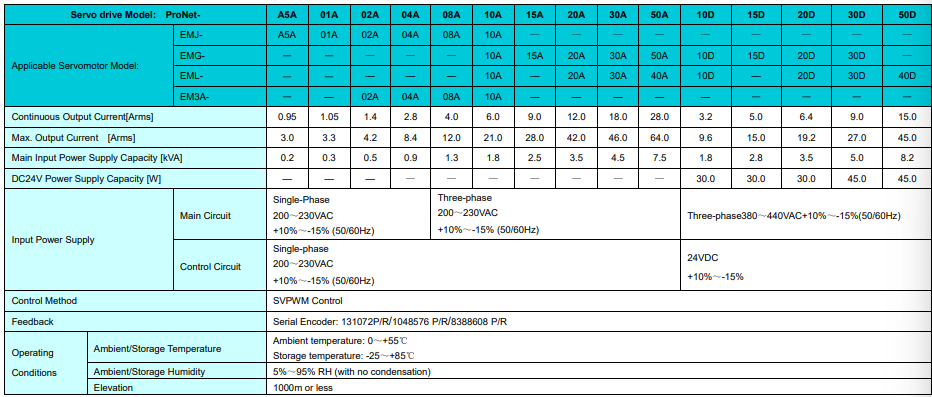

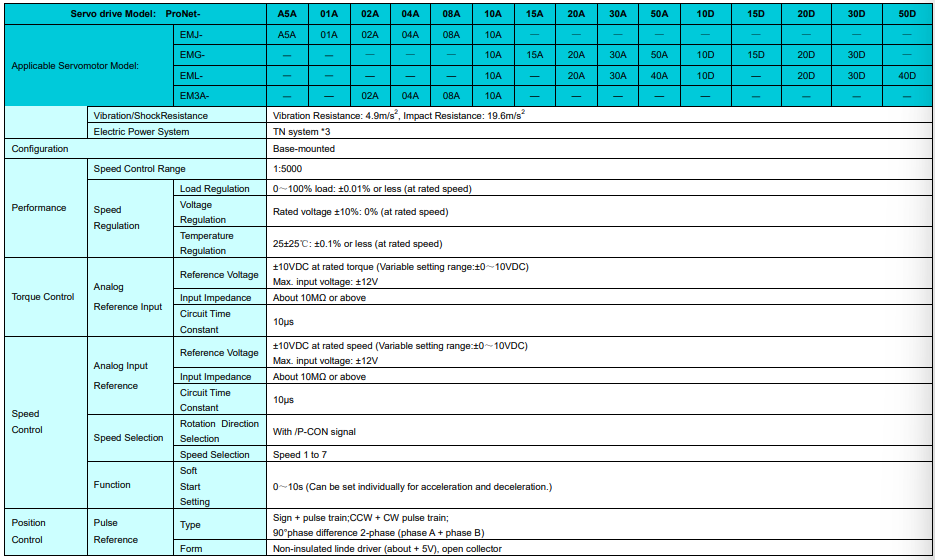

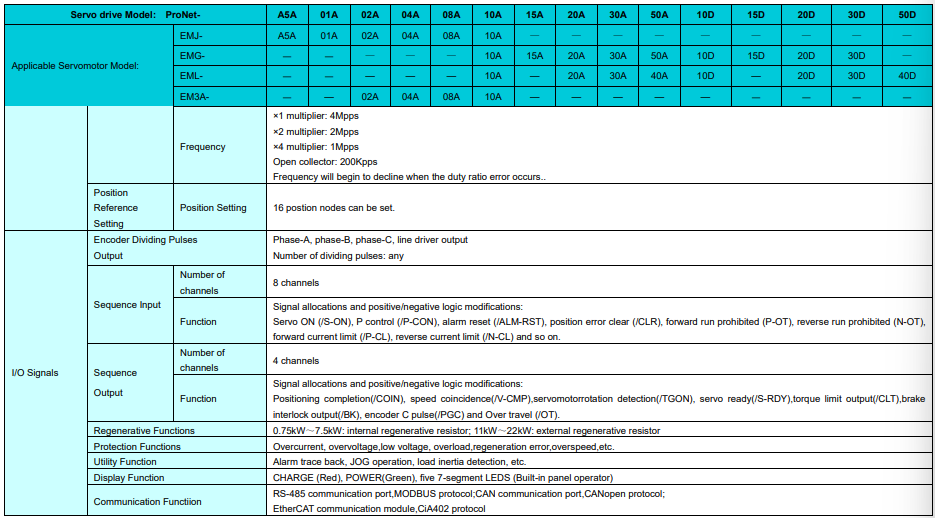

7.1 Servo drive Specifications and Models

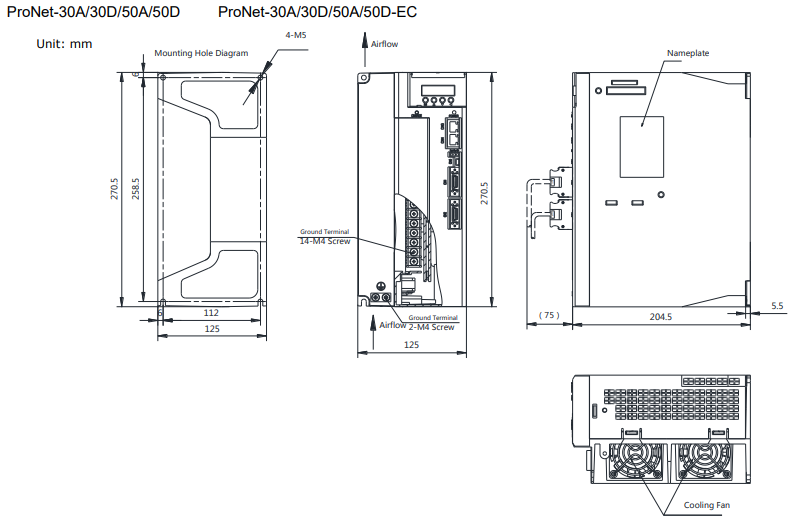

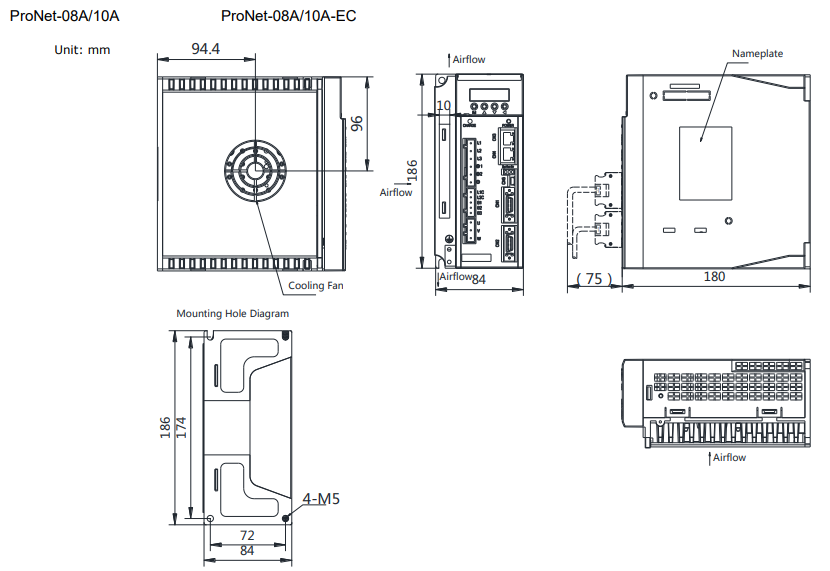

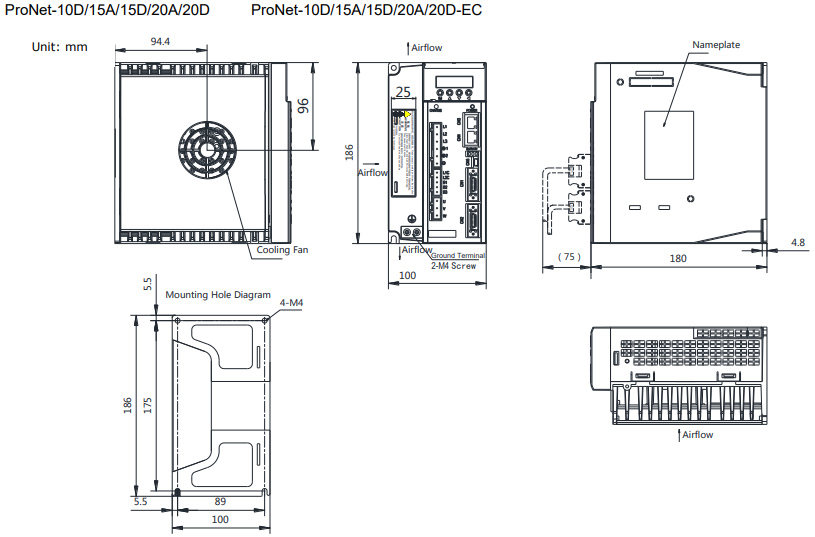

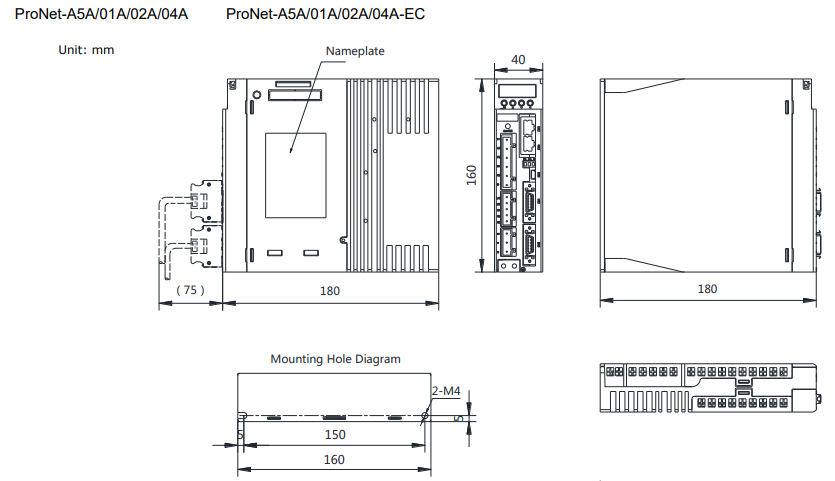

7.2 Servo drive Dimensional Drawings

7.3 Servo motor Specifications and Models

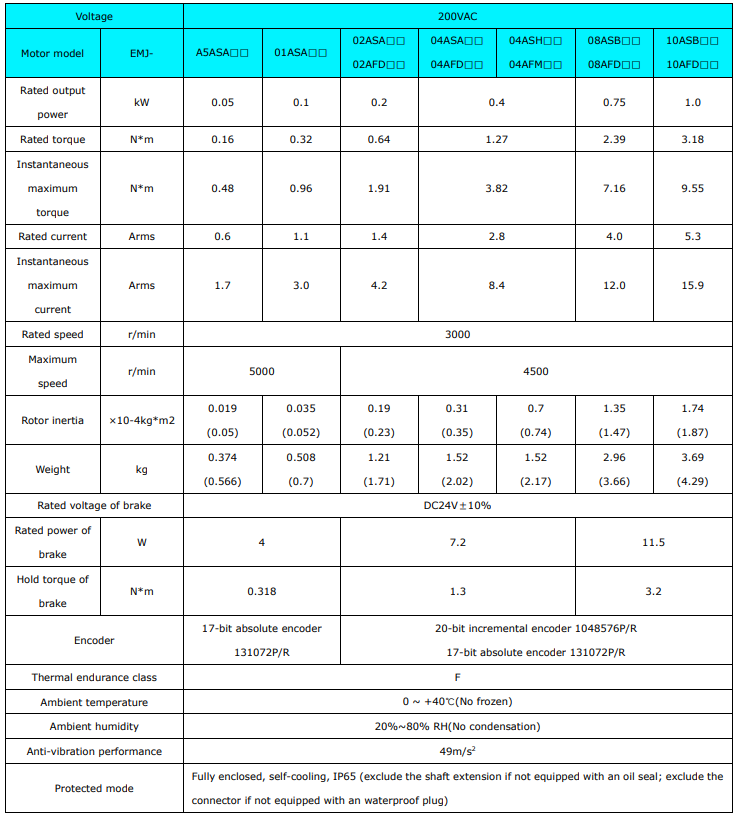

The specification of EMJ model motor is as shown in the following table.

Note: The values in parentheses are for servo motors with holding brake.

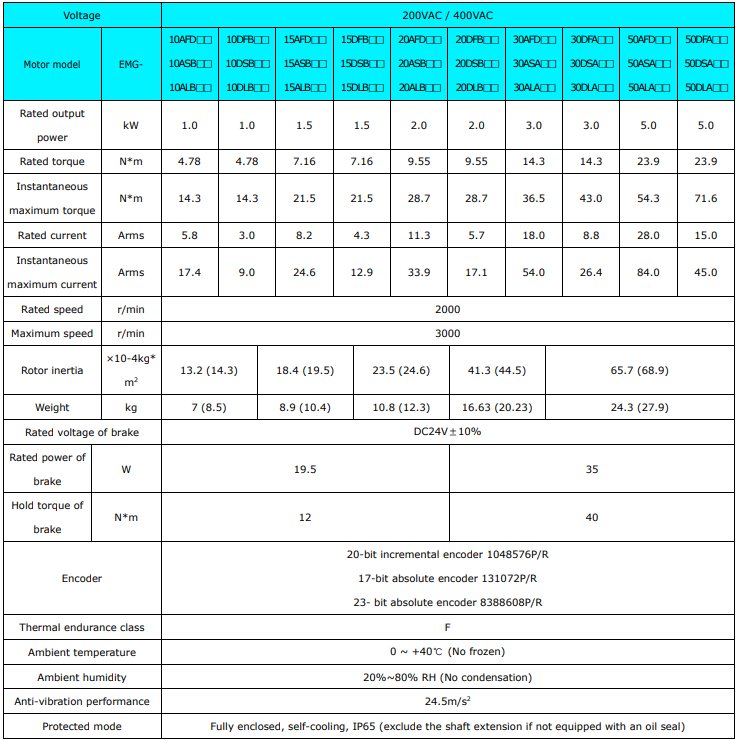

The specification of EMG model motor is as shown in the following table

Note: The values in parentheses are for servo motors with holding brake.

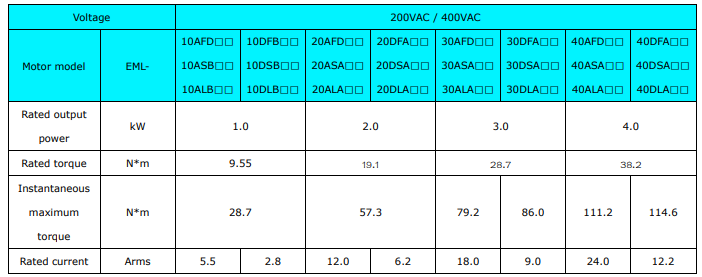

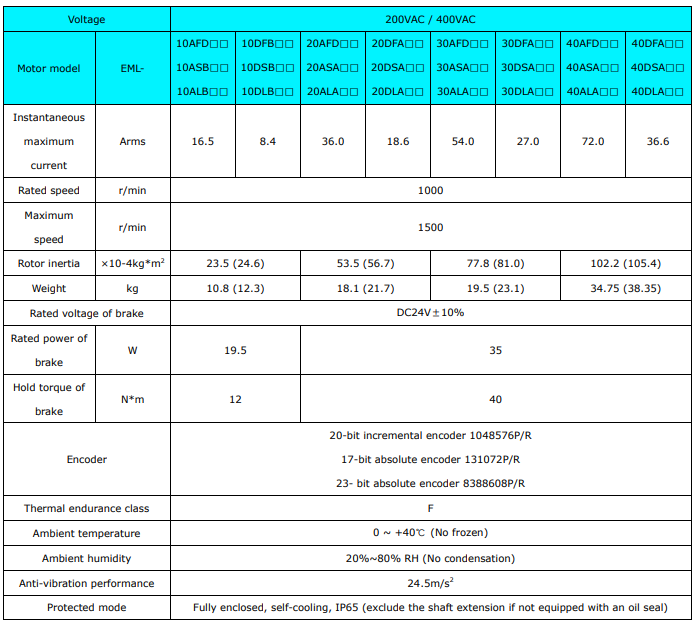

The specification of EML model motor is as shown in the following table.

Note: The values in parentheses are for servo motors with holding brake.

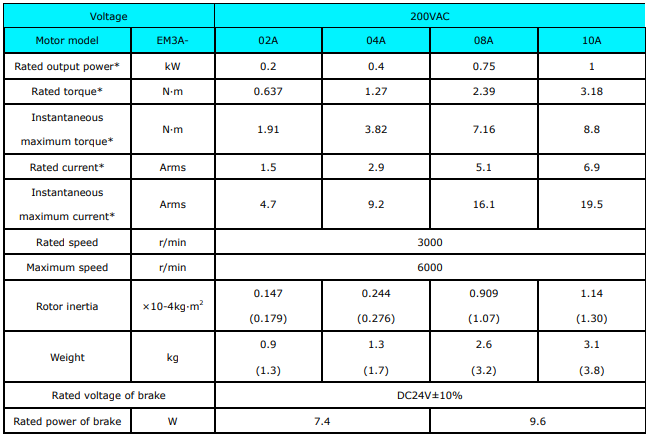

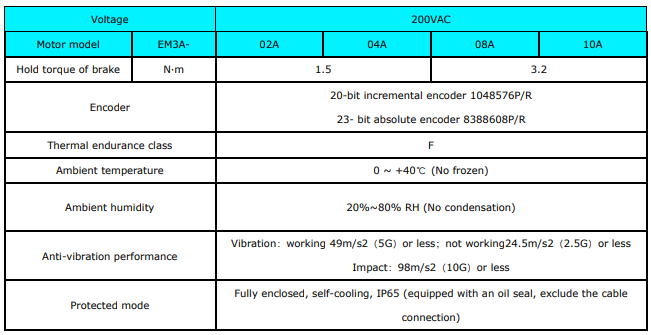

The specification of EM3A model motor is as shown in the following table.

Note:
1. The values in parentheses are for servo motors with holding brake.
2. The above specification can be achieved，only if equipped with ProNet-□□□□G and use 220VAC supply voltage.
3. The above rated torque can be achieved，only if 250mm x 250mm x 6mm aluminum radiator fin is installed and the ambient temperature is 0-40℃;
4. values with * are the typical values，when the motor is equipped with ProNet-□□□□G and the armature coil temperature is 100℃
5. Rated output power of the motor with oil seal is reduced to 95%.

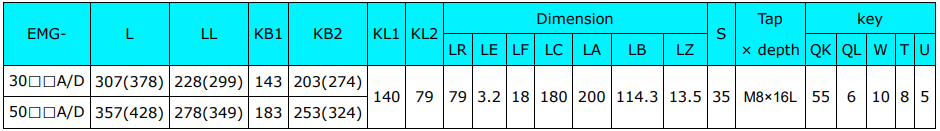

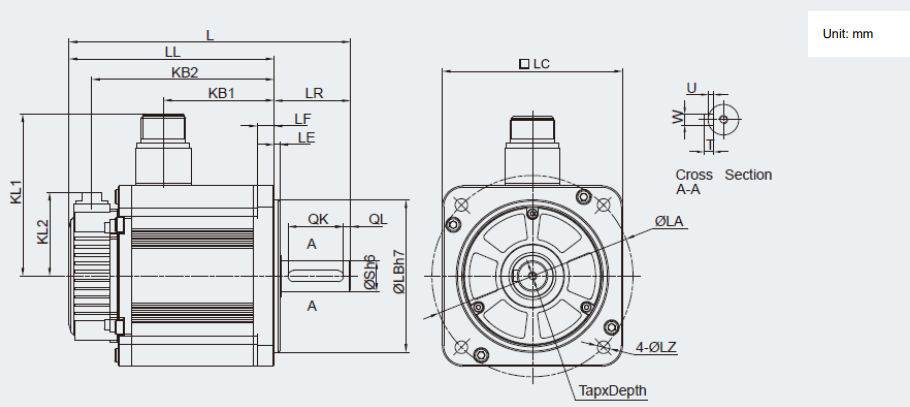

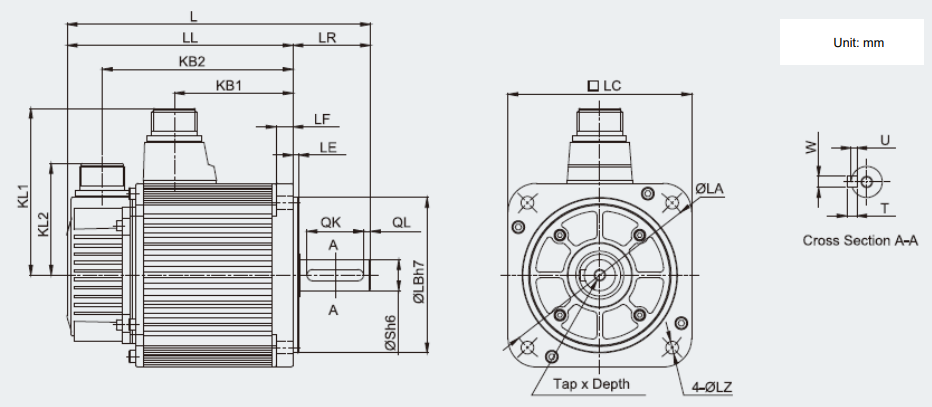

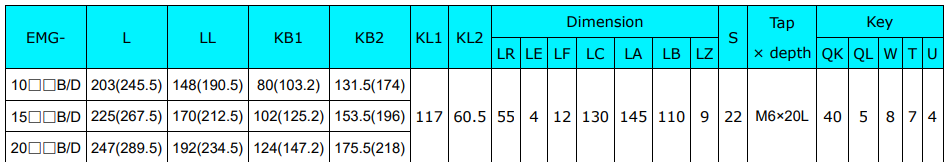

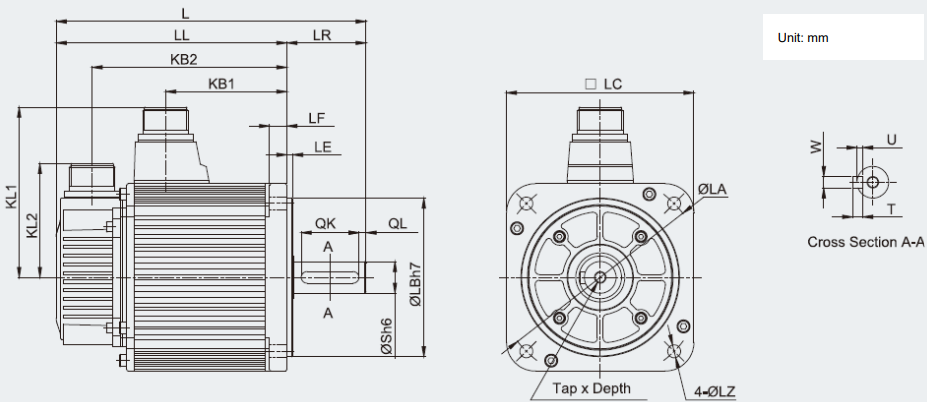

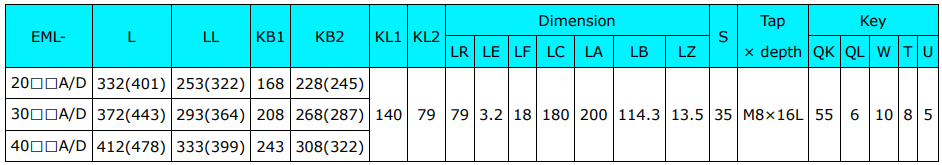

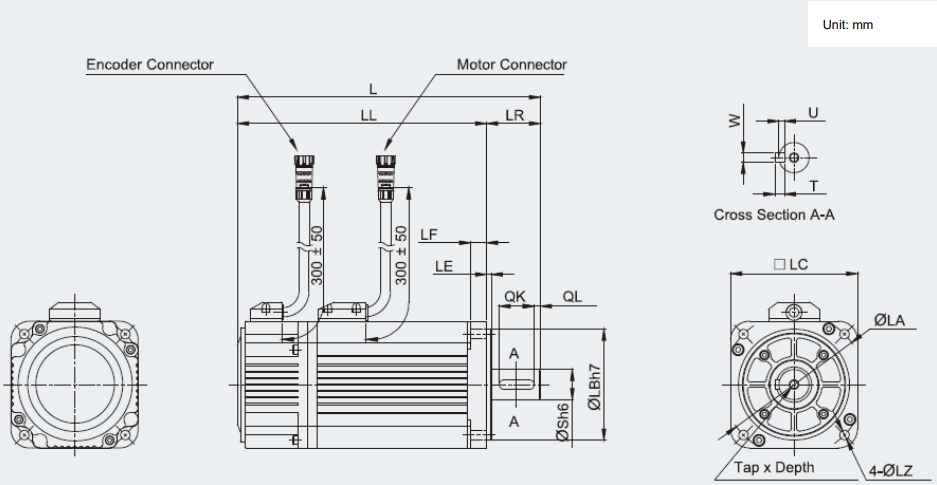

7.4 Servo Motor Dimensional Drawings

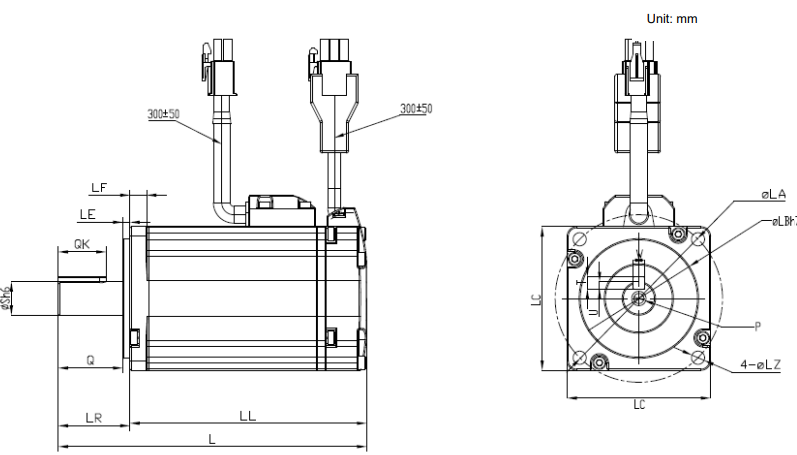

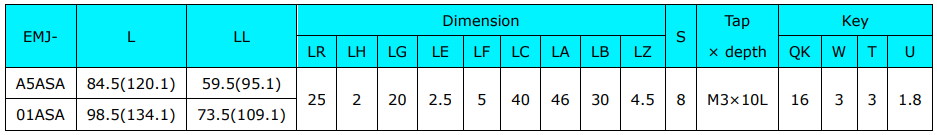

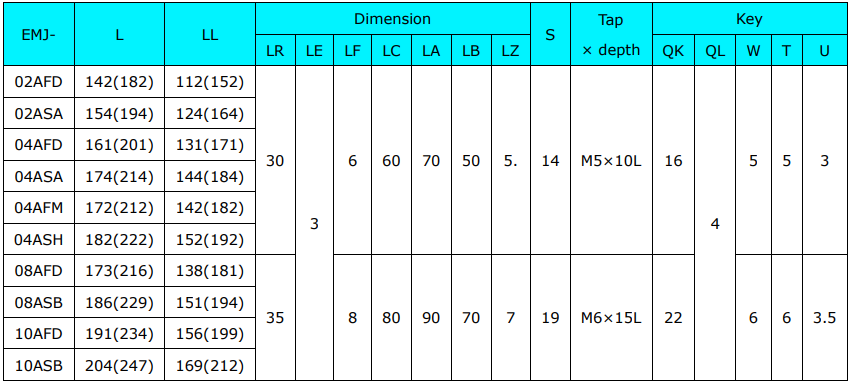

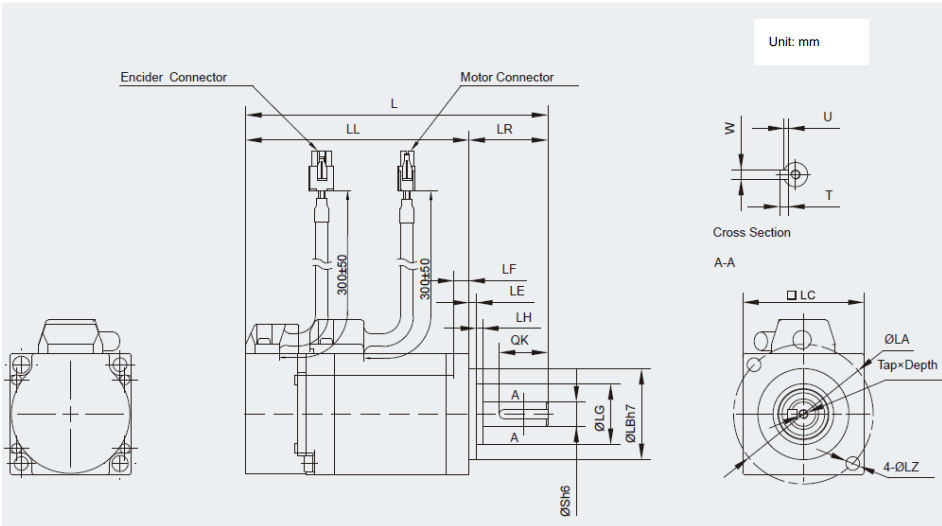

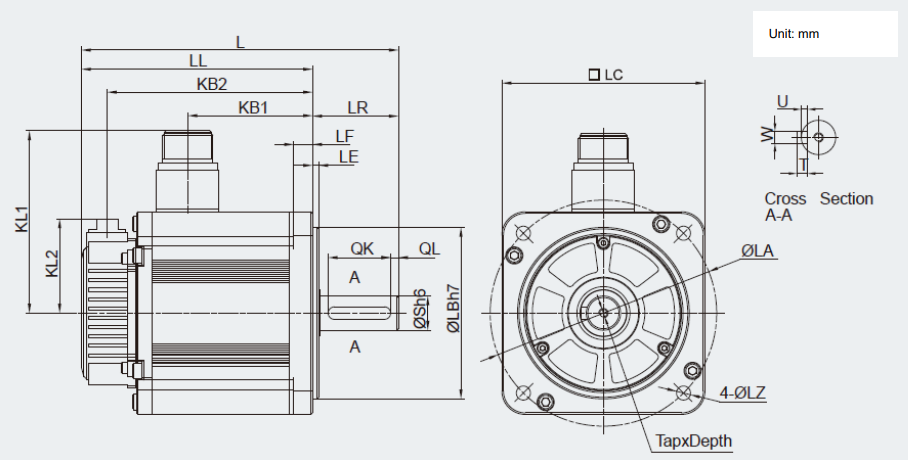

EMJ dimension
