1. Specification

Features
 HD 720p High Resolution HDMI Output
 One Gigabit Ethernet Port
 Compact Design and DIN-rail Mountable
 Built-in 256MB Flash Memory
 SD Card Slot for Extension of Storage
 One USB Host Port
 Fan-less Cooling System
 Supports MPI 187.5K
 Power Isolator Inside

Memory	Storage (MB)	256
	RAM (MB)	256
Processor		ARM Cortex A8 600MHz
I/O Port	SD Card Slot	SD/SDHC
	USB Host	USB 2.0 x 1
	USB Client	N/A
	Ethernet	10/100/1G x 1
	Com Port	COM1 RS-232,COM2 RS-485 2W/4W,COM3 RS-485 2W
	CAN Bus	N/A
	HDMI	Resolution 1280 x 720
RTC		Built-in (CR1225 3V lithium battery
Power	Input Power	24±20%VDC
	Power Consumption	230 mA@24V
	Power Isolation	Built-in
	Voltage Resistance	500VAC (1 min)
	Isolation Resistance	Exceed 50M at 500VDC
	Vibration Endurance	10 to 25Hz(X,Y,Z direction 2G 30 minutes)
Specification	Enclosure	Plastic
	Dimensions WxHxD	130 x 115 x 27mm
	Weight (kg)	Approx. 0.18 kg
	Mount	35mm Din rail mounting
	Storage Temperature	-20° ~ 70°C (-4° ~ 158°F)
	Operating Temperature	-20° ~ 55°C (-4° ~ 131°F)
	Relative Humidity	10% ~ 90% RH (non-condensing)
Certificate		Complies with CE
Software		EasyBuilder Pro V3.00.02 or later versions

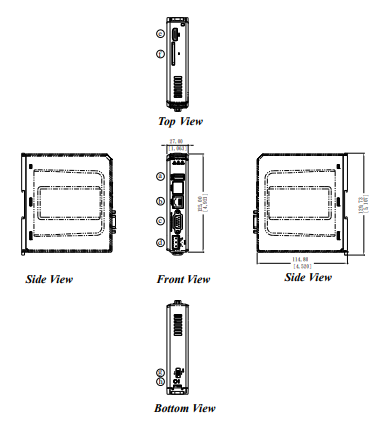

1.1 Dimensions

a	USB Host Port	e	HDMI
b	Ethernet Port	f	SD Card Slot
c	Com1 RS-232, Com2 RS-485 2W/4W, Com3 RS-485 2W	g	DIP Switch
d	Power Connector	h	Reset Button

1.2  Connector pin designations

PIN#	Symbol	COM1 RS-232	COM2 RS-485		COM3 RS-485
			2W	4W
1	Data+				Data+
2	RxD	Received Data
3	TxD	Transmitted Data
4	Data-				Data-
5	GND	Signal Ground
6	RX+		Data+	RX+
7	RX-		Data-	RX-
8	TX+			TX+
9	TX-			TX-

1.3 USB Host port and SD card slot

USB 2.0 full speed host interface supports USB mouse devices, keyboards, printers, barcode scanners, and USB disk. While using external hard drive, use external power supply. Do not use USB port to charge external device. Insert SD card to be the extension of storage.

1.4 Ethernet port

The unit has one 10/100/1G Ethernet port. The LED indicators on the Ethernet port indicate: Orange LED: LAN link status Green LED: Active status

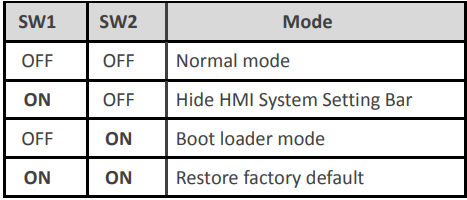

1.5 DIP switch

Each HMI is equipped with a reset button and a DIP switch. When using DIP switch to change modes, the corresponding functions will be triggered.

Note: Reboot HMI after adjusting DIP switches to start the corresponding mode.

1.6 LED indicator

LED indicators show the operation status of HMI.

Power (Orange)	Indicates power status.
CPU (Green)	Indicates CPU status.
Communication (Blue)	Indicates communication status, blinks during communication. When communication is good, it may stay on

1.7 CR1225 battery

mTV-100 Series HMI requires a coin type lithium battery CR1225 to keep the RTC running. Battery type: CR1225 3V lithium battery

1.8 Power connection

Power: The unit can be powered by DC power only, voltage range: 24±20% Volts DC, compatible with most controller DC systems. The power conditioning circuitry inside the unit is accomplished by a switching power supply. The peak starting current can be as high as 500mA.
Connection: To make a connection, strip about 3/8”of insulation off the end of the wire, turn the connector screw counterclockwise until the gap is wide open, insert the wire all the way in, and turn the screw clockwise until it is tight.

Note: Connect positive DC line to the ‘+’terminal and the DC ground to the‘-’terminal.

1.9 HDMI Output

Supports 1280 × 720 high resolution HDMI output. Displays image via HDMI or DVI interface LED  LCD.

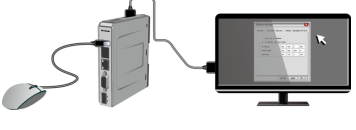

Note: When mTV-100 enters backlight saver mode, an external keyboard or mouse is needed to turn on the backlight. Since TD2220 Touch Display is in standby mode when the backlight is off, touching the screen has no effect. To turn on the backlight again and enable touch screen, connect an external keyboard or mouse to operate.

The following part shows different ways to connect HDMI.

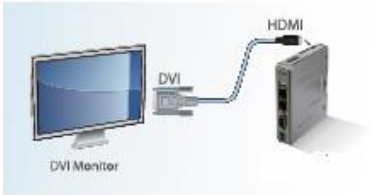

Connect to DVI monitor.
Use HDMI-to-DVI converter to connect the monitor.

Note: mTV-100 supports resolution 1280x720p, please use DVI monitor / converter.

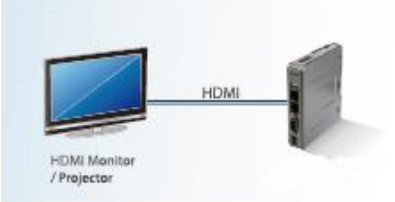

Directly connect to HDMI monitor.

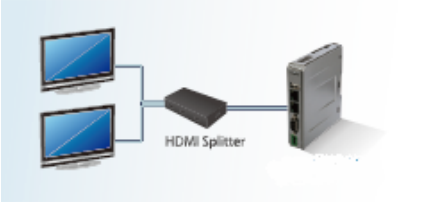

Use HDMI splitter to connect multiple HDMI monitors.

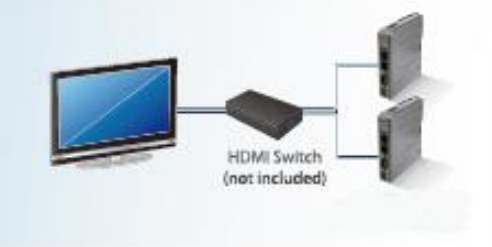

Use HDMI switch to connect two mTV-100 with one HDMI monitor.

Note: If not connecting a repeater, the maximum length of HDMI cable allowed is 15m. To reach a longer distance, please use CAT6 cable or a repeater. HDMI converter is used to detect the monitor and correctly output.
