Appendix C Standard Wiring Examples

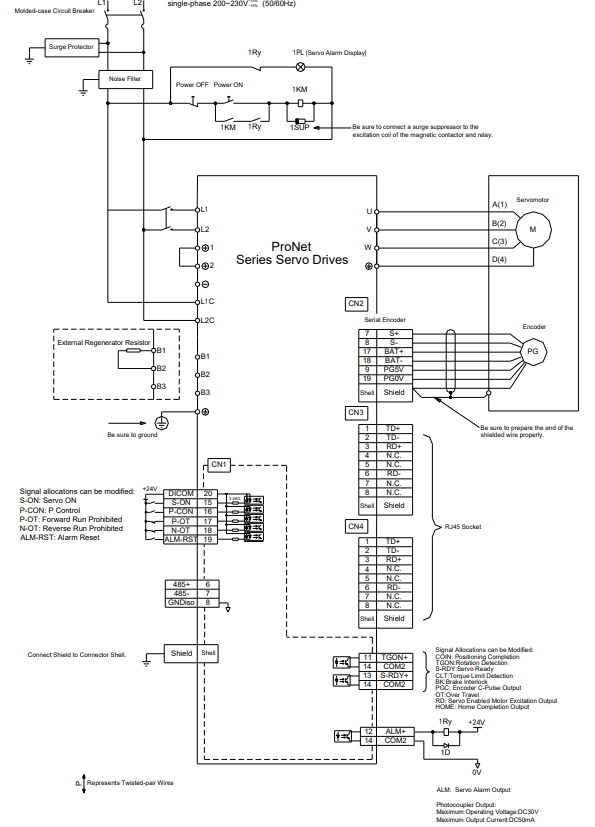

C.1 Single-phase 200VAC (ProNet-A5AEA-EC ~ ProNet-04AEA-EC ProNet-02AEF-EC~ ProNet-04AEF-EC)

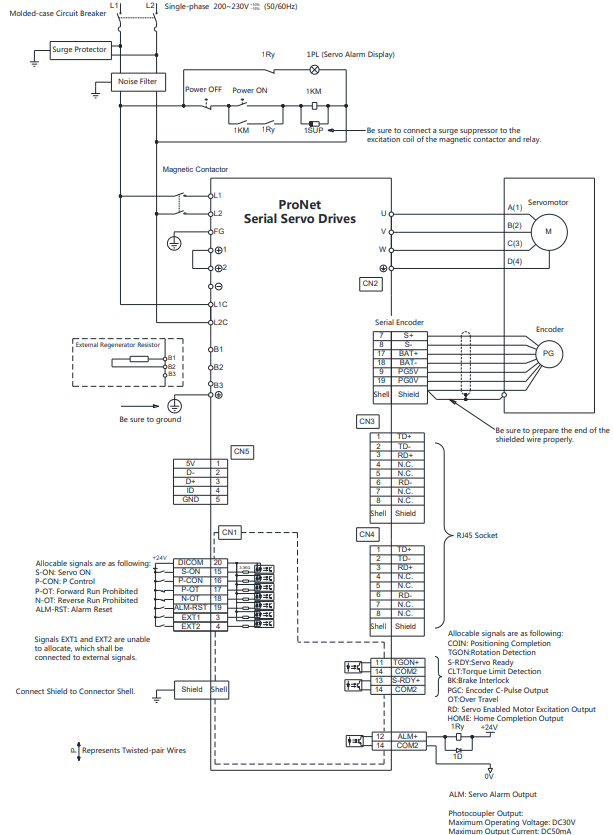

C.2 Single-phase 200VAC (ProNet-A5AEG-EC ~ ProNet-04AEG-EC)

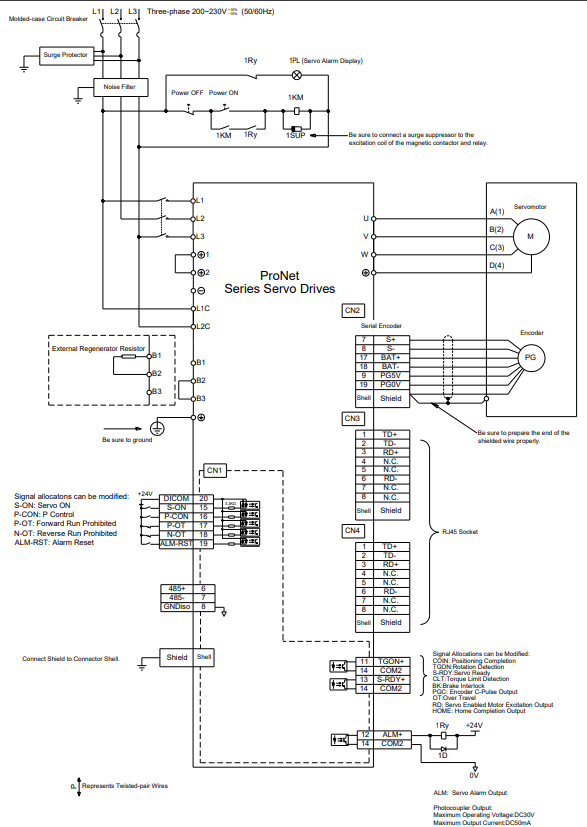

C.3 Three-phase 200VAC（ProNet-08AEA-EC ~ ProNet-50AEA-EC ProNet-08AEF-EC ~ ProNet-20AEF-EC）




C.4 Three-phase 200V（ProNet-08AEG-EC ~ ProNet-50AEG-EC）

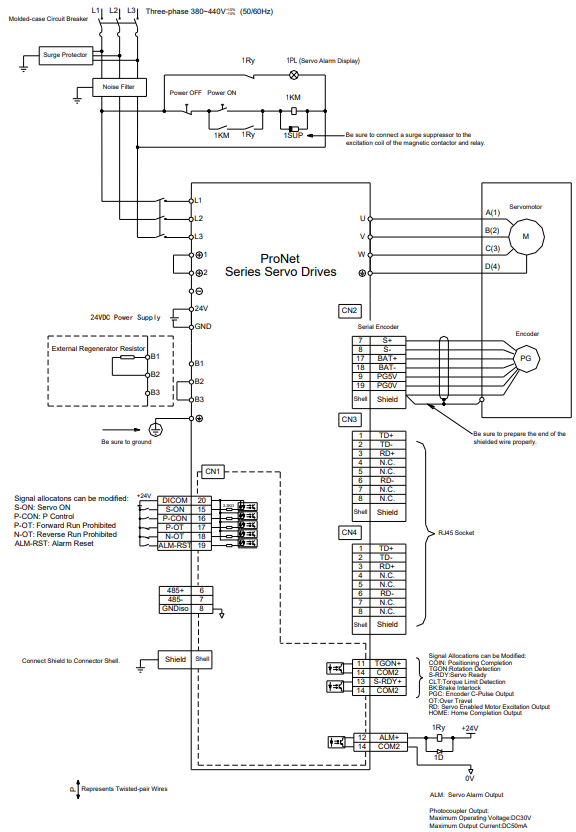

C.5 Three-phase 400VAC (ProNet-10DEA-EC ~ ProNet-70DEA-EC)




C.6 Three-phase 400VAC（ProNet-10DEG-EC ~ ProNet-50DEG-EC）






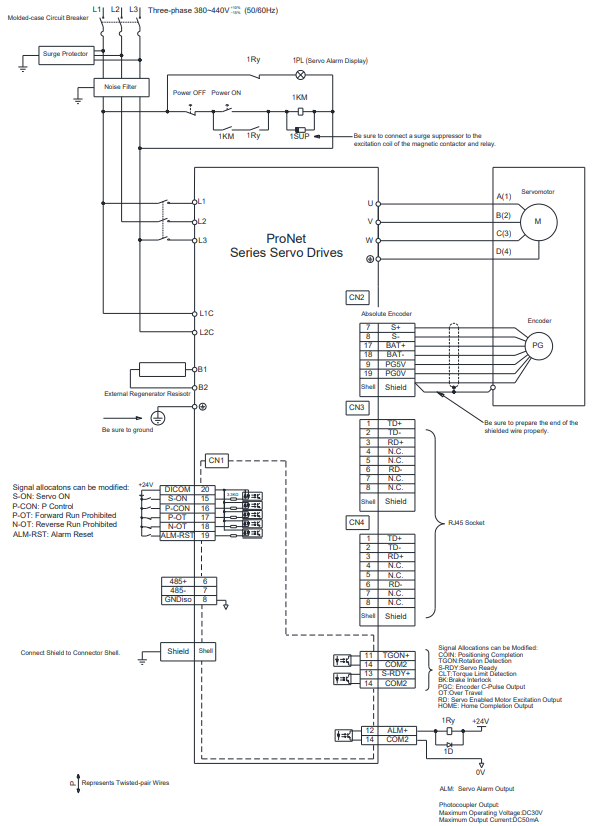

C.7 Three-phase 400VAC (ProNet-1ADEA-EC to ProNet-2BDEA-EC)
