2. Introduction

SCMVS is an application software designed for smart cameras. It is compatible with the SC2000 E series, SC2000E (mini) series, SC3000 Pro series, SC5000 series, and SC7000 Pro series visual sensor and requires the firmware of version 2.0.0 or later.
After logging in to cameras via the Software, you can manage the cameras' projects, including creating, editing, deleting, copying, and switching projects. While editing projects, you can configure the camera parameters, base images, tools, and output parameters.
Meanwhile, you can configure the I/O settings, communication settings, time settings, and password of the camera as well as upgrading its firmware. In addition, the Software supports monitoring the status of multiple cameras simultaneously.
The Software supports conducting visual detection on both the images stored in and imported into cameras

2.1 Key Features

Key features of the Software:
● Easy installation: Requires no additional drivers.
● High compatibility: Compatible with 32/64-bit Windows 7, Windows 10, or Windows 11 operating system.
● User-oriented UI design: Guides users to edit projects with the Wizard.
● Camera Management: Supports managing multiple cameras and monitoring their working status.
● Mode division: Displays detection results in the running mode, displays function settings in the configuration mode.
● Visual detection: Conducts visual detection on the real-time images from cameras or the images imported into cameras.

2.2 System Requirements

The Software can be properly installed and run under the following system requirements

Recommendations
● Operating system: 32/64-bit Windows 7, Windows 10, or Windows 11 operating system
● CPU: Intel i3-8100T
● RAM: 8 GB or more
● Graphics card: a dedicated graphics card with 1366×768 or higher resolution, the integrated graphics card is not supported
● NIC: Intel Pro1000, I210, and I350 series gigabit network interface card
● Device: MV-VC3301-128G60 vision controller

Minimum system requirements
● Operating system: 32/64-bit Windows 7 or Windows 10 operating system
● CPU: Intel E3845 1.91GHz
● RAM: 4 GB
● Graphics card: a 1366×768 dedicated graphics card, the integrated graphics card is not
supported
● NIC: Intel Pro1000, I210, and I350 series gigabit network interface card
● Device: MV-VB2210-120G vision controller

Note
● The Software has been installed with the drivers required by the hardware. No others drivers are needed.
● Some anti-virus software might recognize the Software as a virus. Hence, it is recommended to add the Software into the allowlist of the anti-virus software or exit the anti-virus software before running the Software.

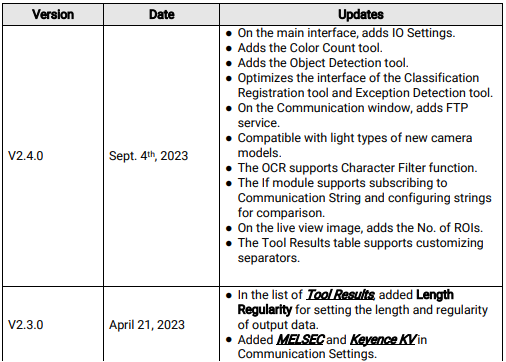

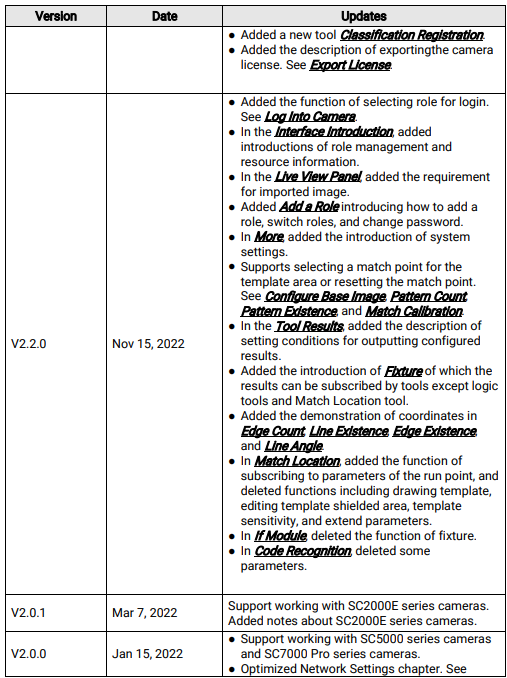

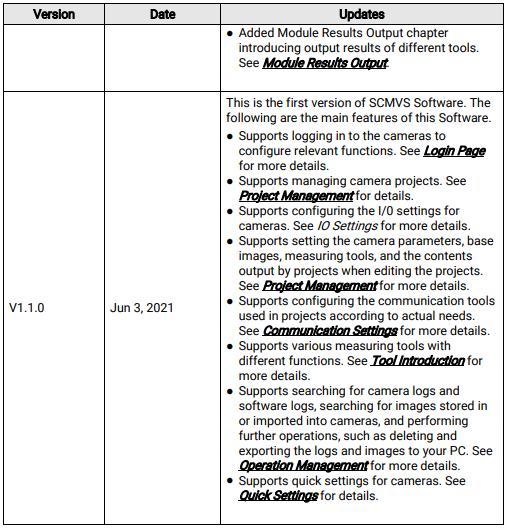

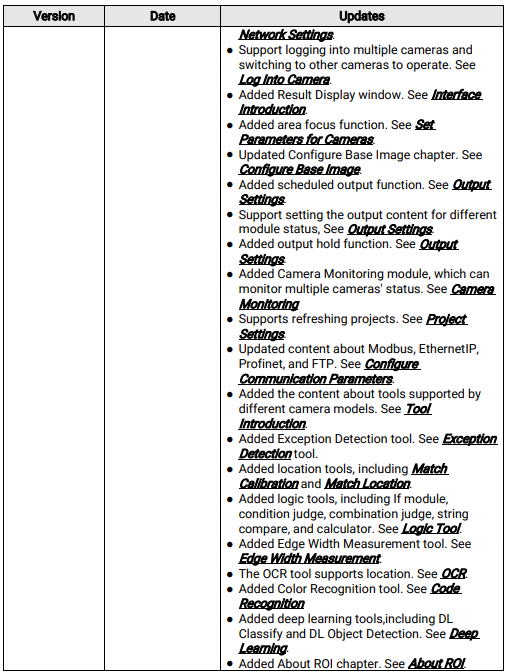

2.3 Revision History
