1. DX3 Servo Drive

1.1 Product Features
As a new single-axis AC servo product from Trio, DX3 is designed with its excellent performance and practical control functions to create a complete set of solutions with the best cost performance for customers.
Matching the MX servo motors, compatible with mainstream controllers, it offers high-speed, highprecision, and high-performance machine solutions.
DX3 has the following outstanding features.
⚫ CANopen supported
⚫ Compact size
⚫ Zero stacking gap installation
⚫ 200 V ac from 50 W to 2 kW
⚫ 480 V ac from 1.0 kW to 7.5 kW
⚫ Compatible with MX servo motors
⚫ 17-bit absolute encoder (magnetic) or 23-bit absolute encoder (photoelectric)
⚫ Comprehensive tuning technology including Auto-tuning function, adaptive vibration suppression, friction compensation

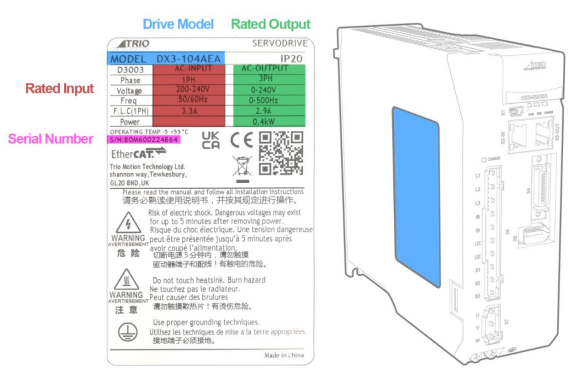

1.2 Interpreting the Nameplate

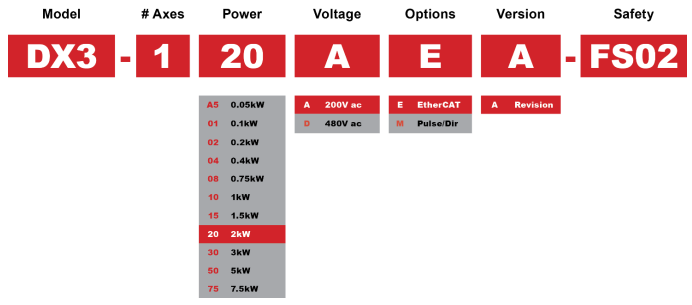

1.3 Model Designations

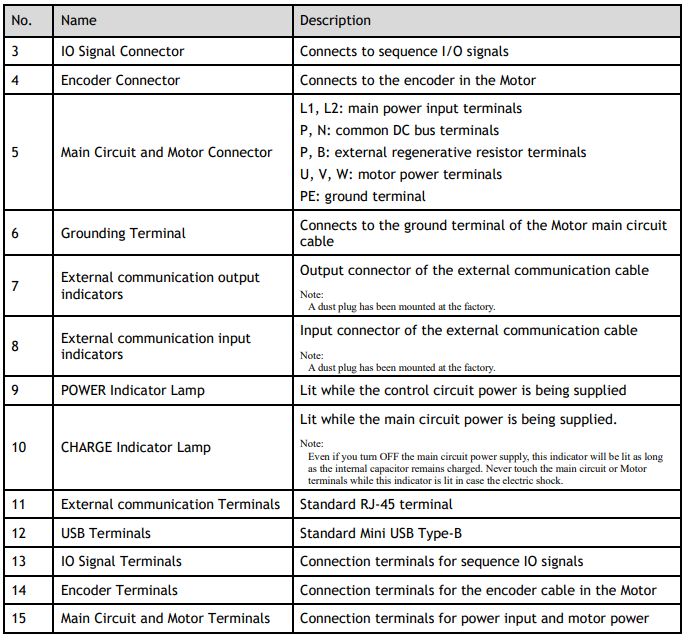

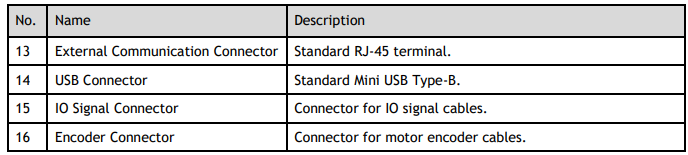

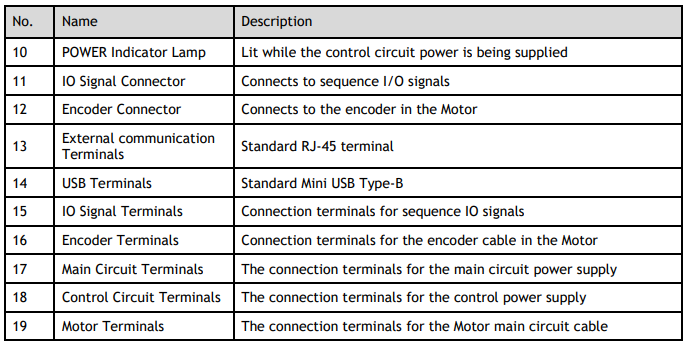

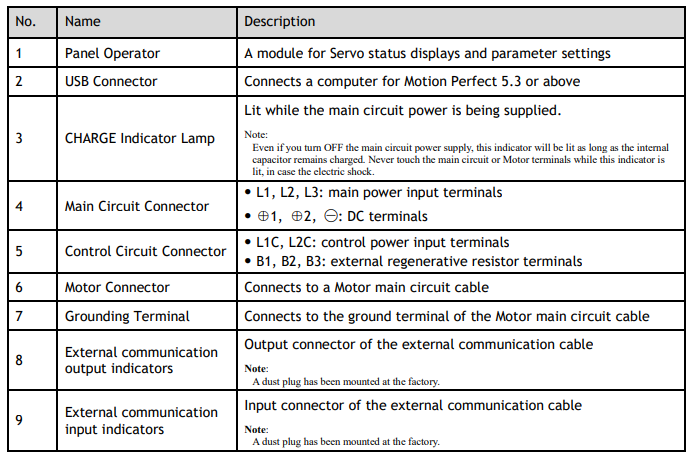

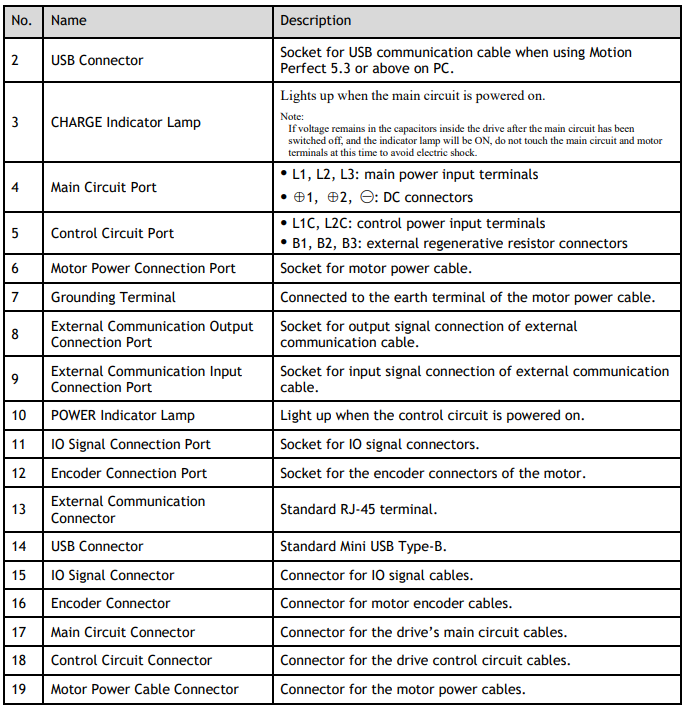

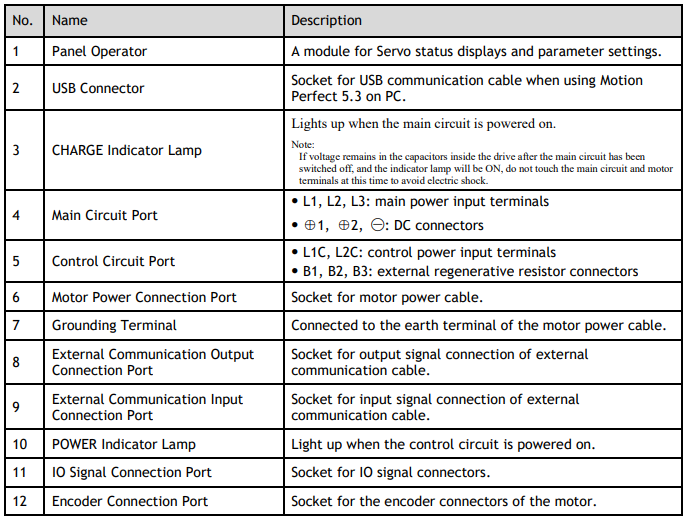

1.4 Part Names

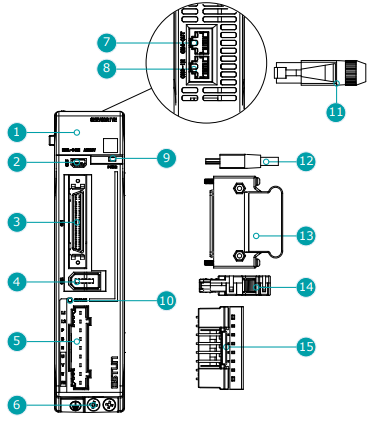

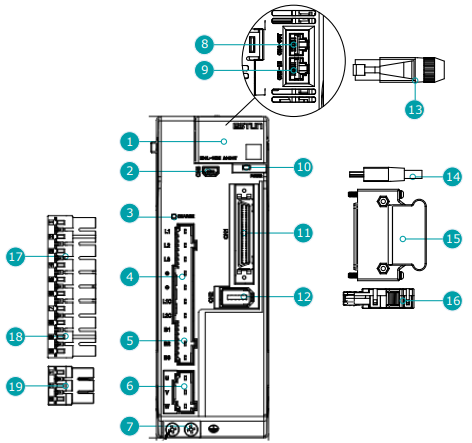

Rated power from 50W to 400W (200VAC)

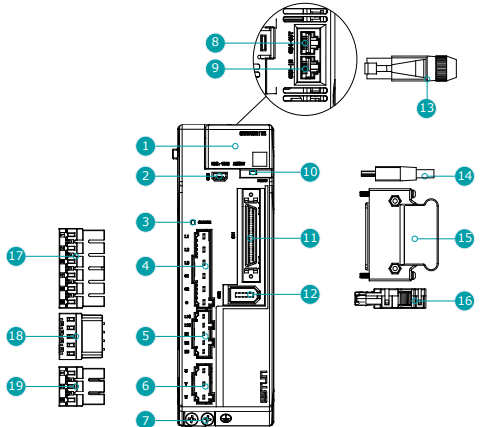

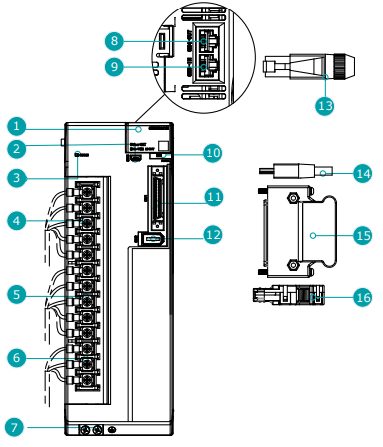

Rated power from 750W to 2kW (200VAC)







Rated power from 1kW to 3kW (400VAC)







Rated power from：5kW to 7.5kW (400VAC)

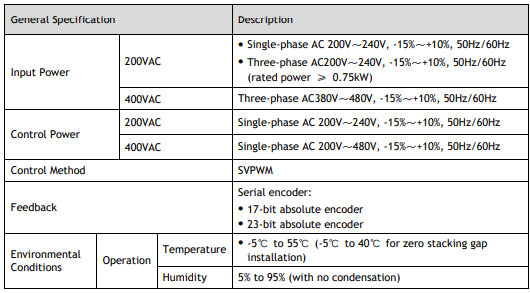

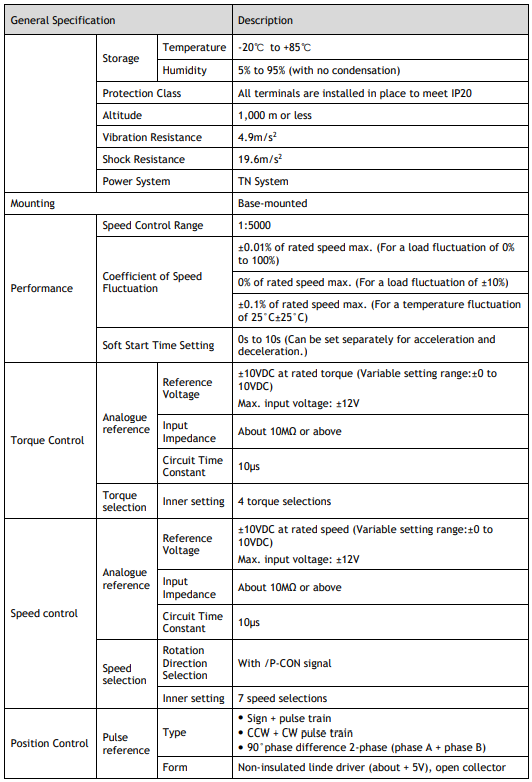

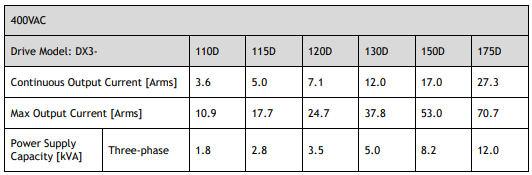

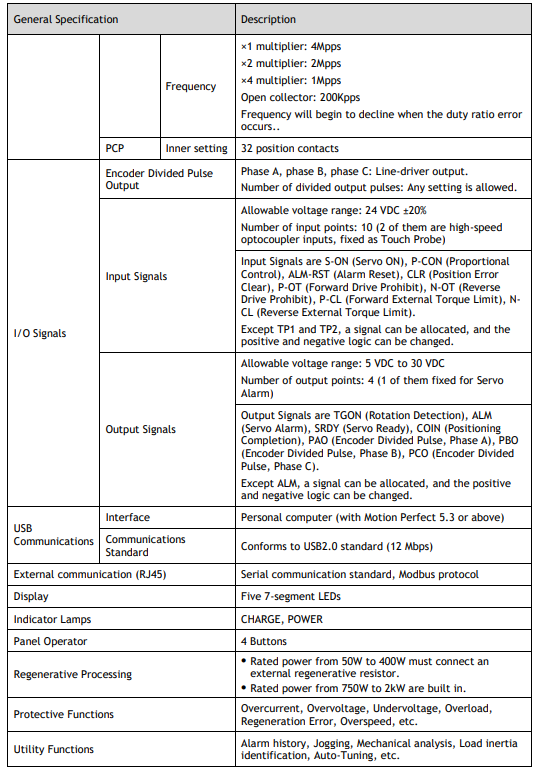

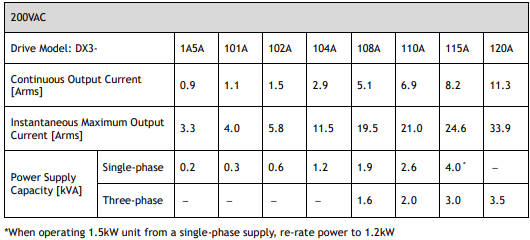

1.5 Ratings and Specifications

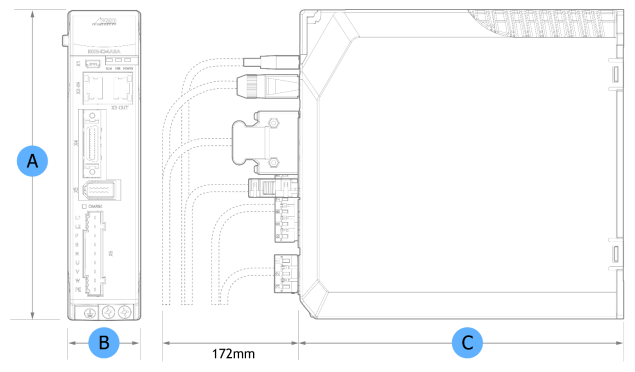

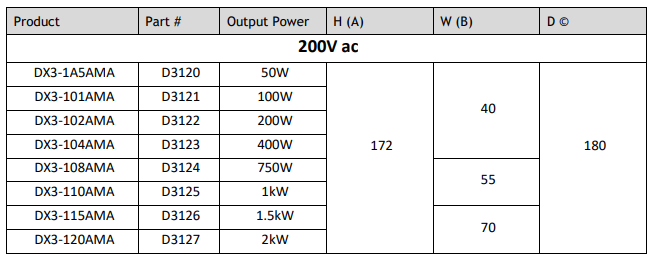

1.6 Dimensions

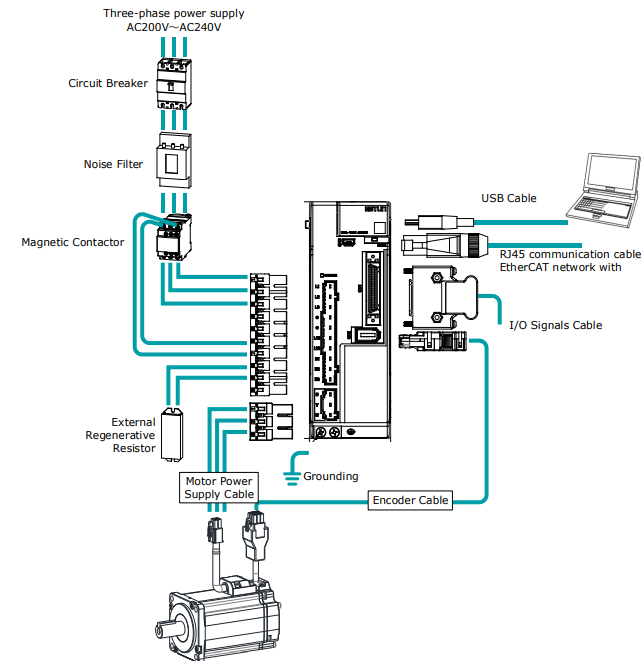

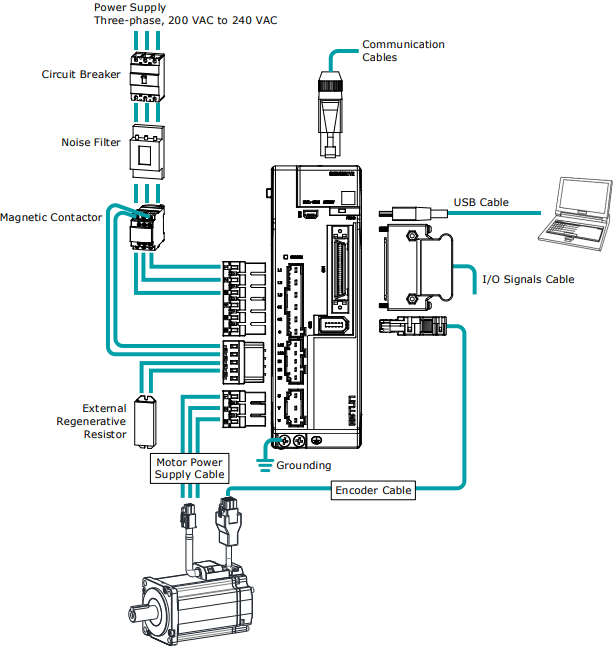

1.7 System Configuration

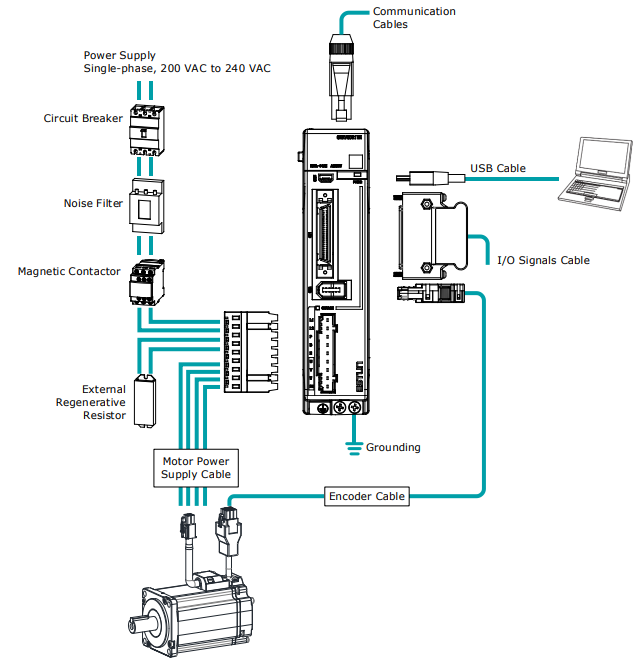

Rated power from 50W to 400W
200VAC, single-phase




Rated power from 750W to 2kW
200VAC, three phase




Rated power from 1kW to 7.5kW
400VAC, three-phase




1.7.2 Minimum System Configuration

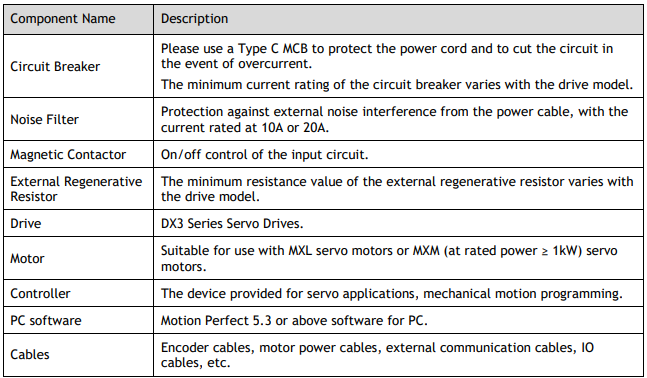

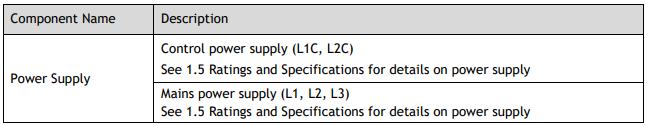

The minimum system configuration includes at least the following components.





1.7.3 Peripherals Devices Specification

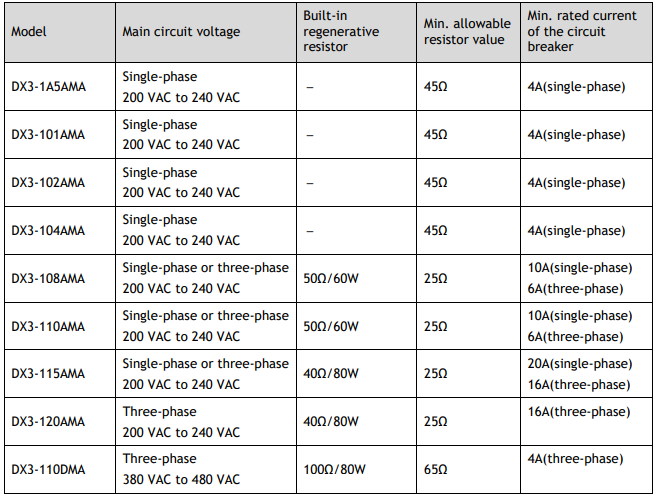

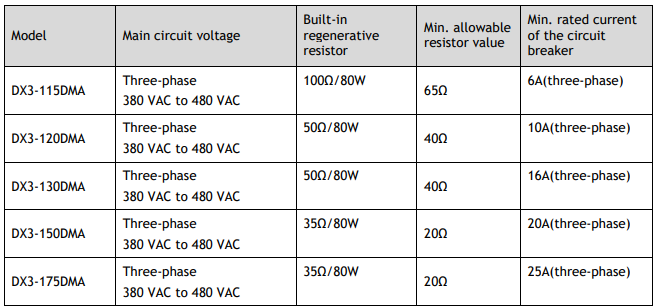

The table below shows details on regenerative resistor and circuit breaker requirements.

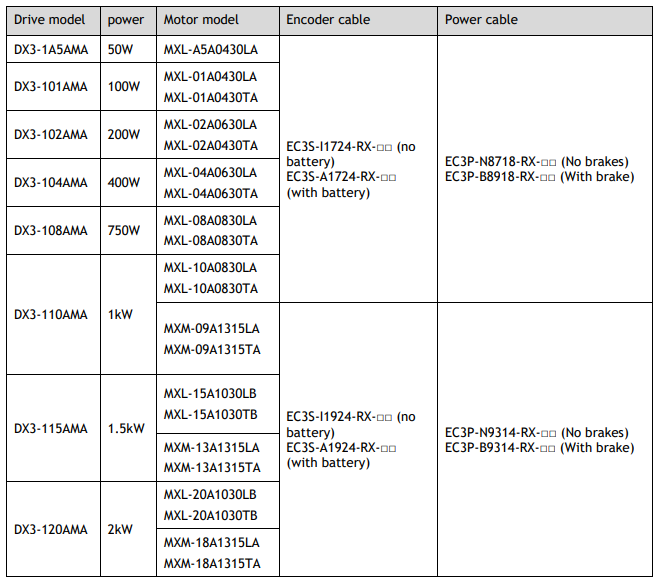

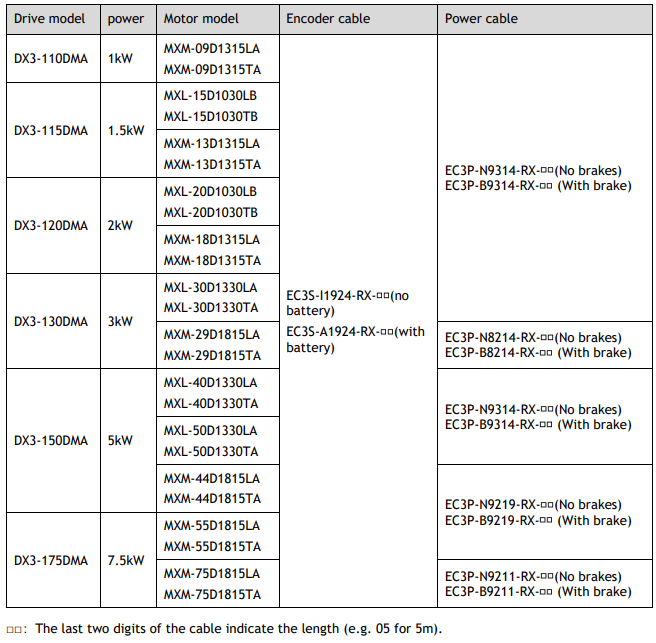

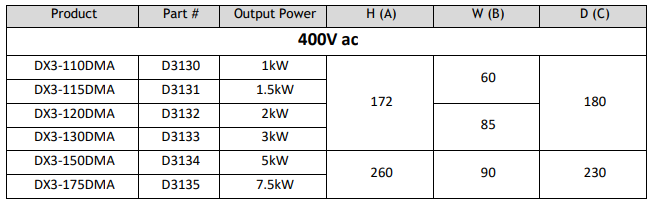

1.8 Part Numbers
