1. Basic Informations on Product

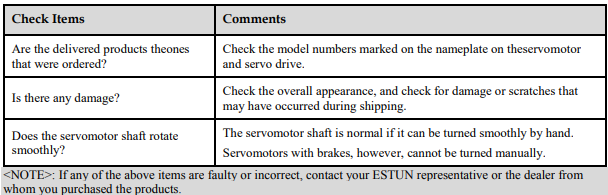

1.1 Checking Products

1.1.1 Servomotor
Nameplate Example

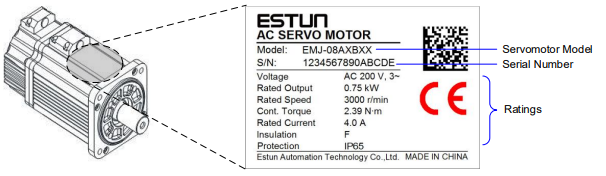

The following figure shows the nameplate of EMJ model Servomotor as an example. Nameplates of the EML model and EMG model are similar.

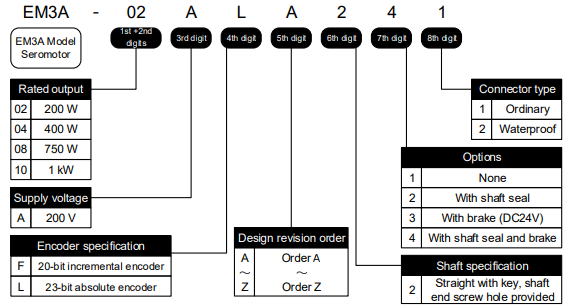

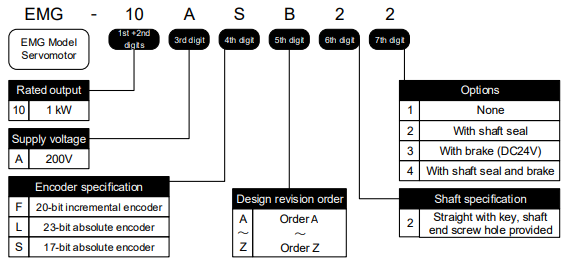

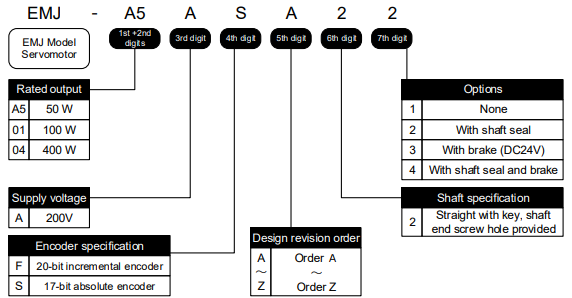

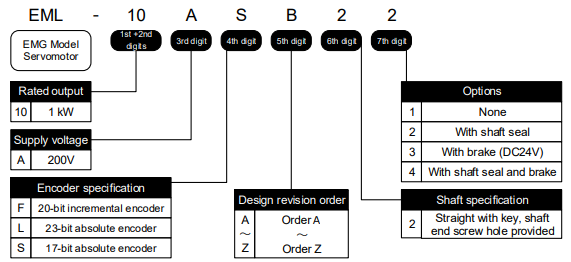

Model Designations

1.1.2 Servodrive
Nameplate Example

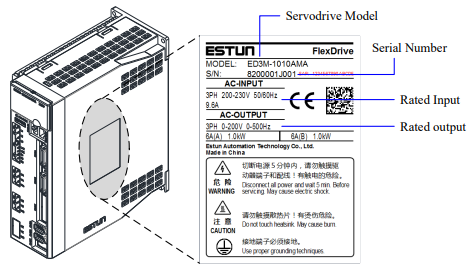

The following figure shows the nameplate of ED3M model Double-Axis Servodrive as an example. The nameplate of the ED3M model Treble-Axis Servodrive is similar.

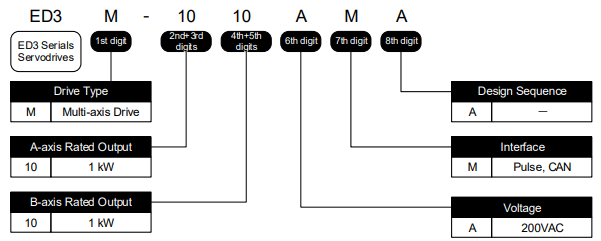

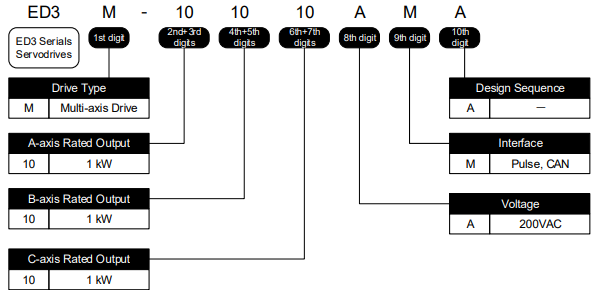

Model Designations

[NOTE] All the axis of ED3M servodrive controlled can be applied for the motor power of 50W to 1kW, those also can be set up to treble in overload capability.

1.2 Part Names
1.2.1 Servomotor

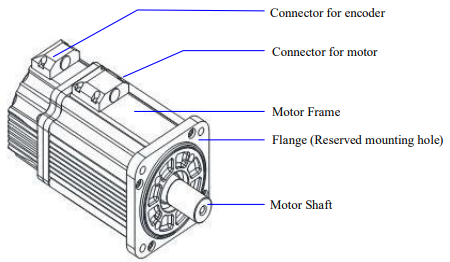

The following figure shows the part names of EMJ model Servodmotor as an example. The part names of the EML model and EMG model Servodrives are similar.

1.2.2 Servodrive

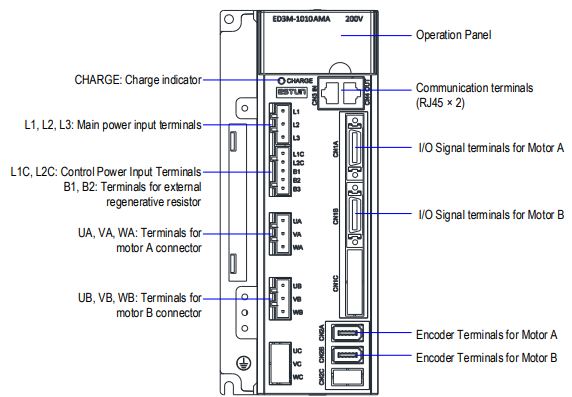

The following figure shows the part names of ED3M model Double-Axis Servodrive as an example. The part names of the ED3M model Treble-Axis Servodrive is similar.
