1. DX3 Servo Drive

1.1 Product Features
As a new single-axis AC servo product from Trio, DX3 is designed with its excellent performance and practical control functions to create a complete set of solutions with the best cost performance for customers.
Matching with the MXL and the MXM servo motors, compatible with mainstream controllers, it offers highspeed, high-precision, and high-performance machine solutions.
DX3 has the following outstanding features.
 EtherCAT support, update rates down to 125 µs
 Compact size
 Zero stacking gap installation
 200 V ac from 50 W to 2 kW
 480 V ac from 1.0 kW to 7.5 kW
 17-bit incremental encoder (magnetic) or 23-bit absolute encoder (photoelectric)
 Comprehensive tuning technology including Auto-tuning function, adaptive vibration suppression, friction compensation.

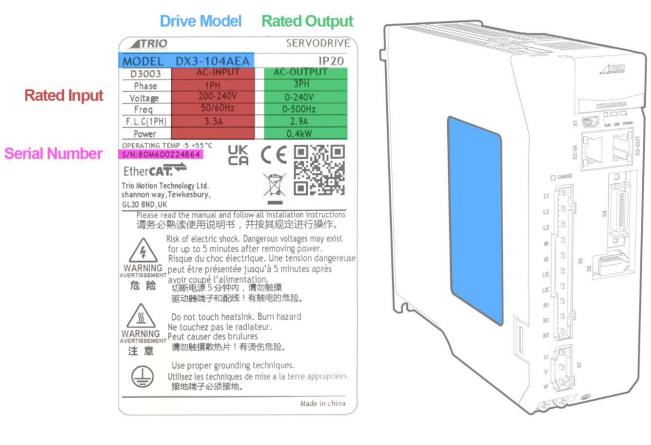

1.2 Interpreting the Nameplate

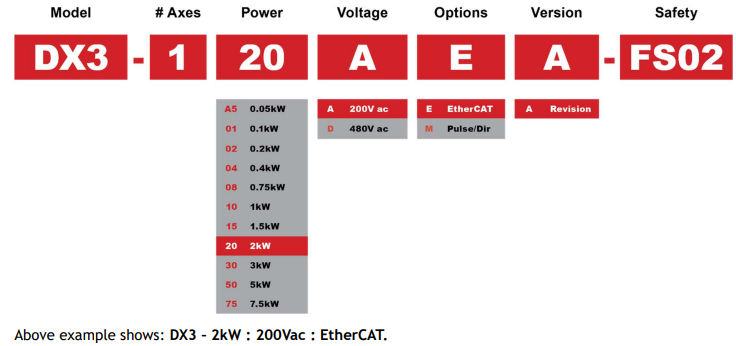

1.3 Model Designations

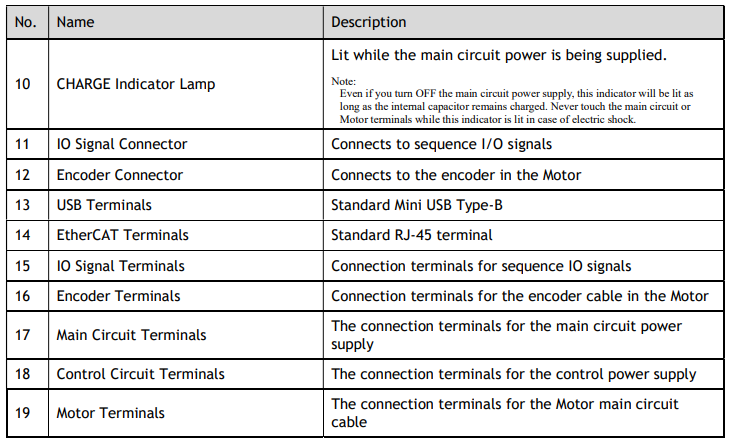

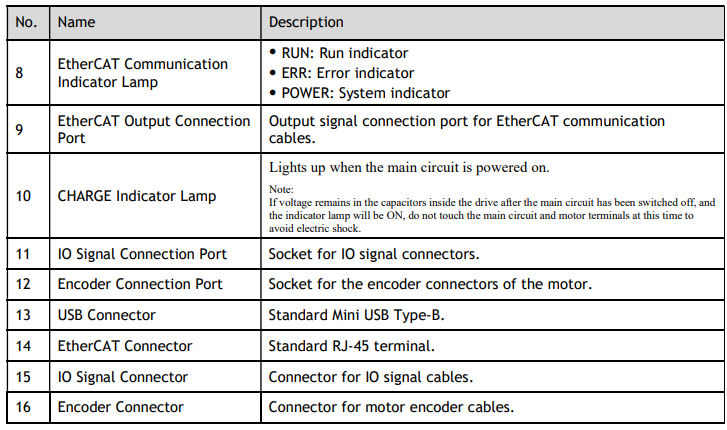

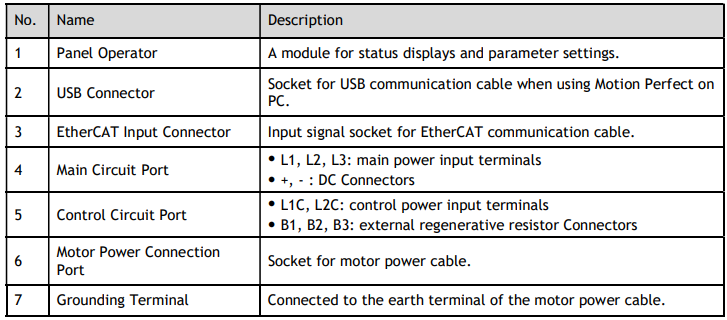

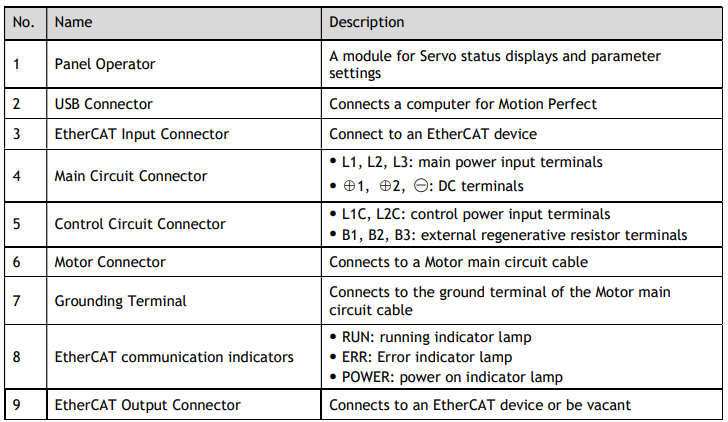

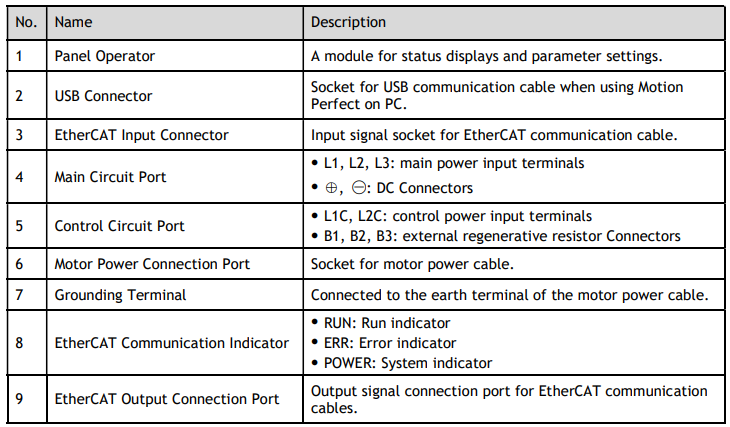

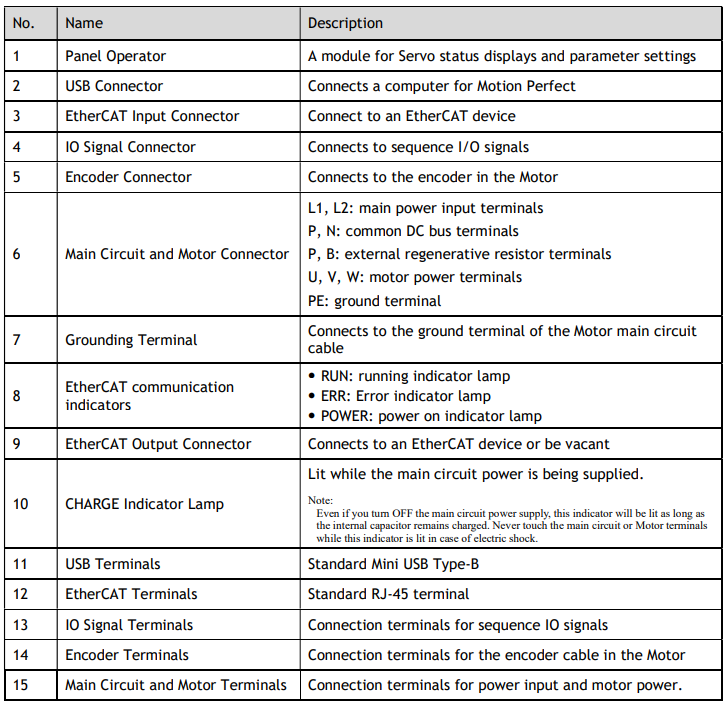

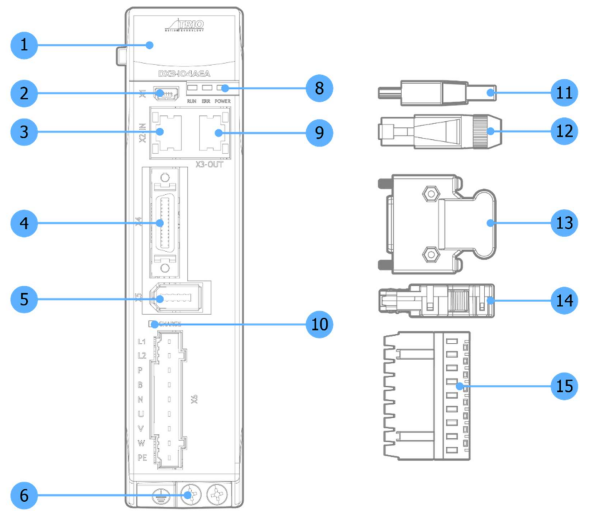

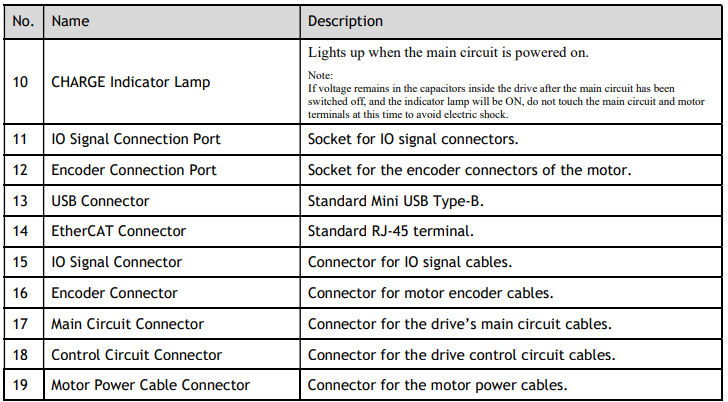

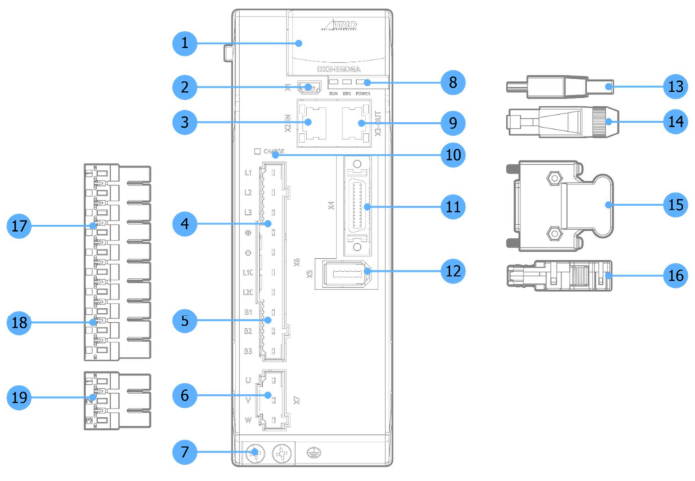

1.4 Part Names

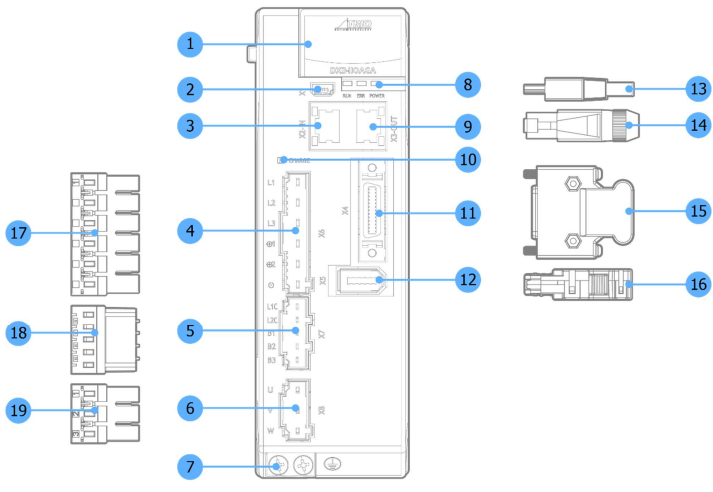

Rated power from 50W to 400W (200VAC)



Rated power from 750W to 2kW (200VAC)



Rated power from 1kW to 3kW (400VAC)

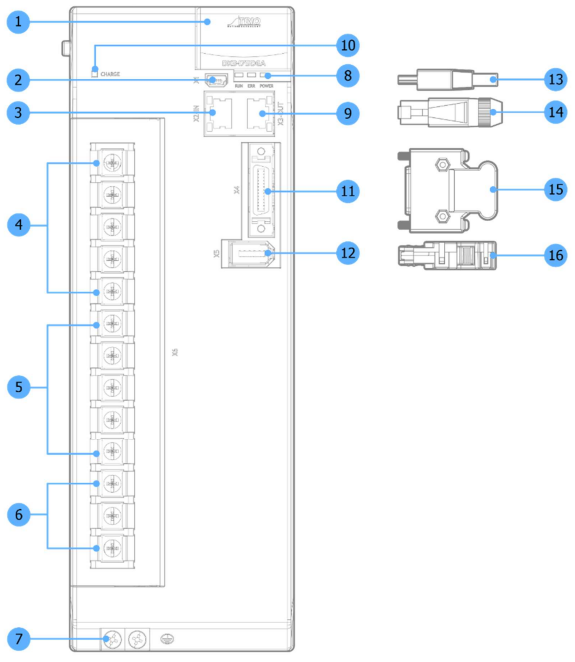

Rated power from 5kW to 7.5kW (400VAC)

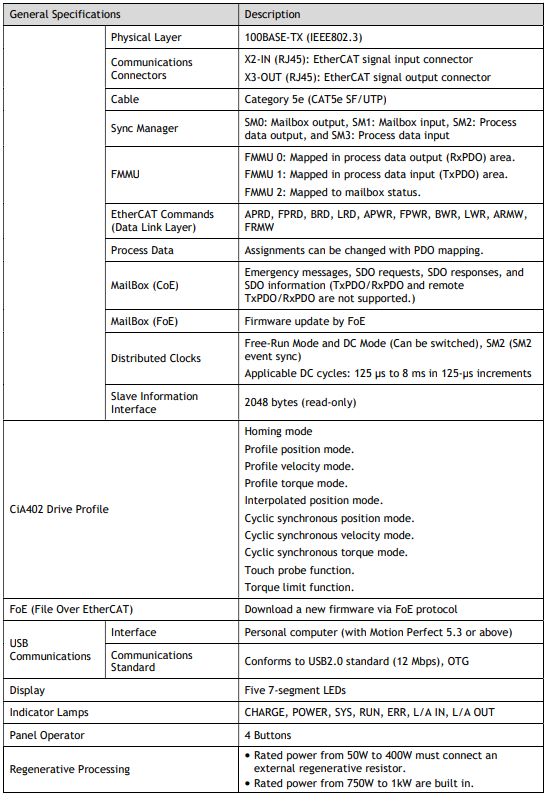

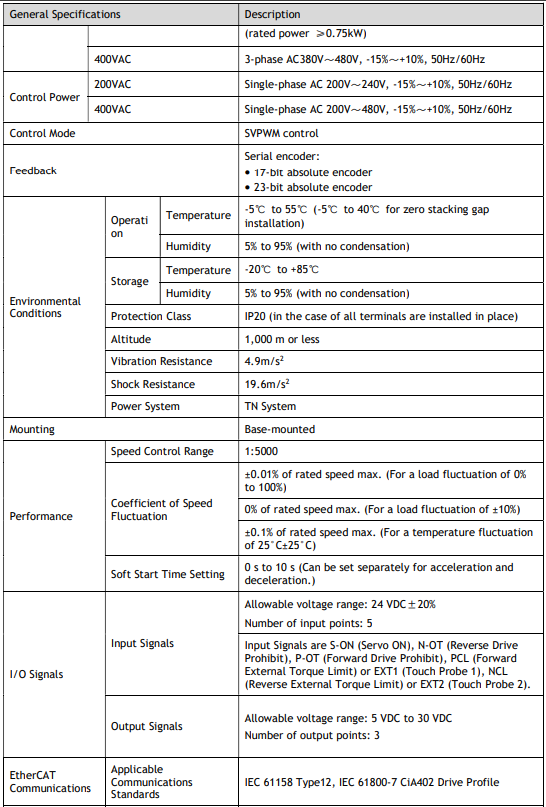

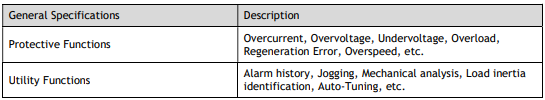

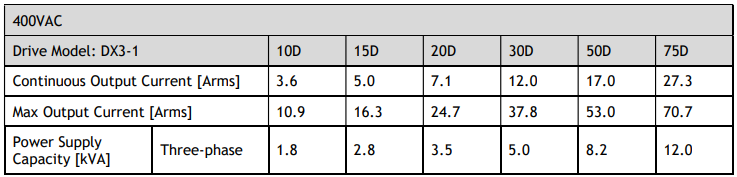

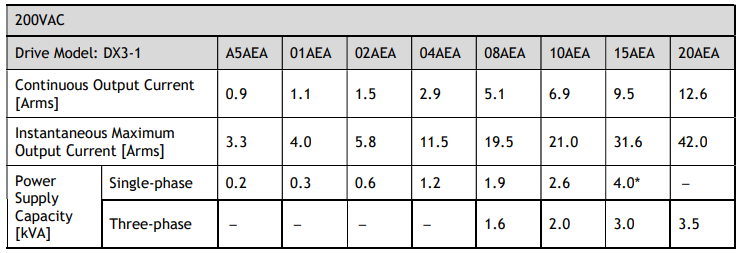

1.5 Ratings and Specifications

*When operating 1.5kW unit from a single-phase supply, re-rate power to 1.2kW

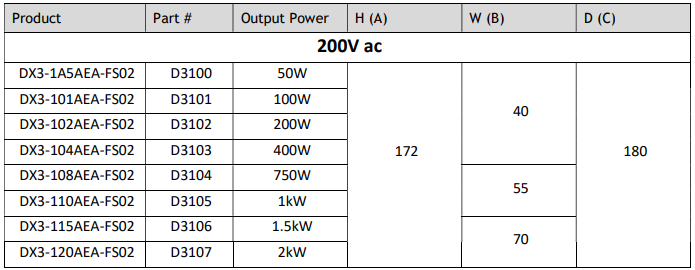

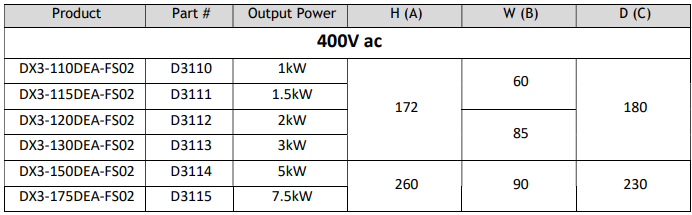

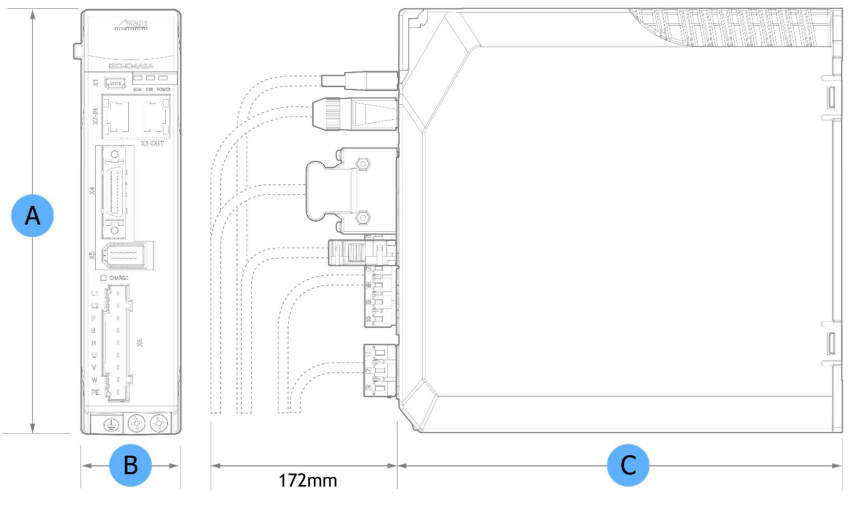

1.6 Dimensions



1.7 System Configuration

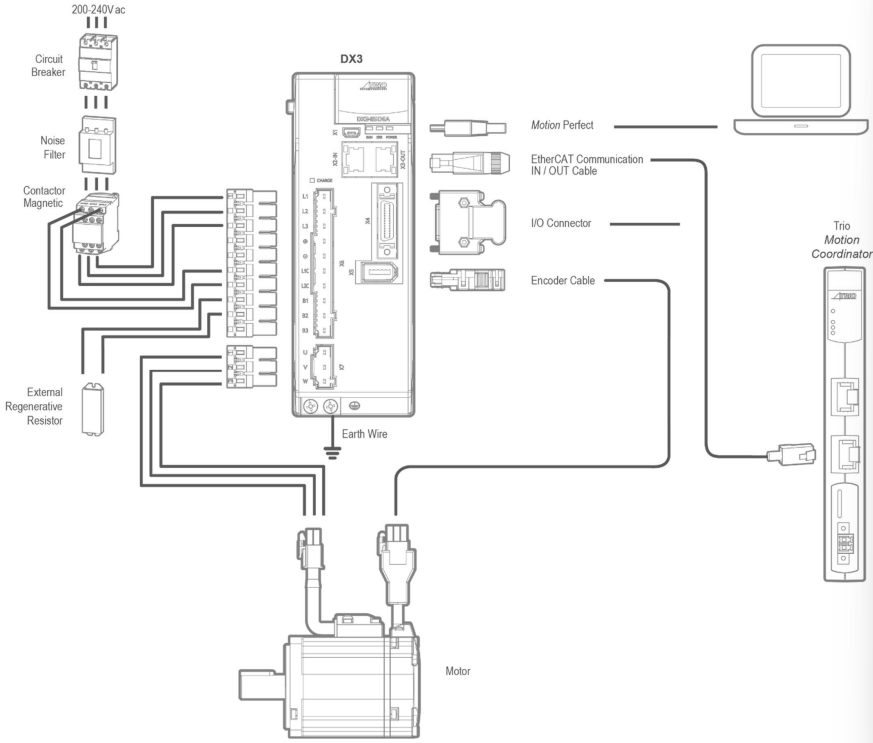

1.7.1 Example Diagram
Rated power from 50W to 400W.

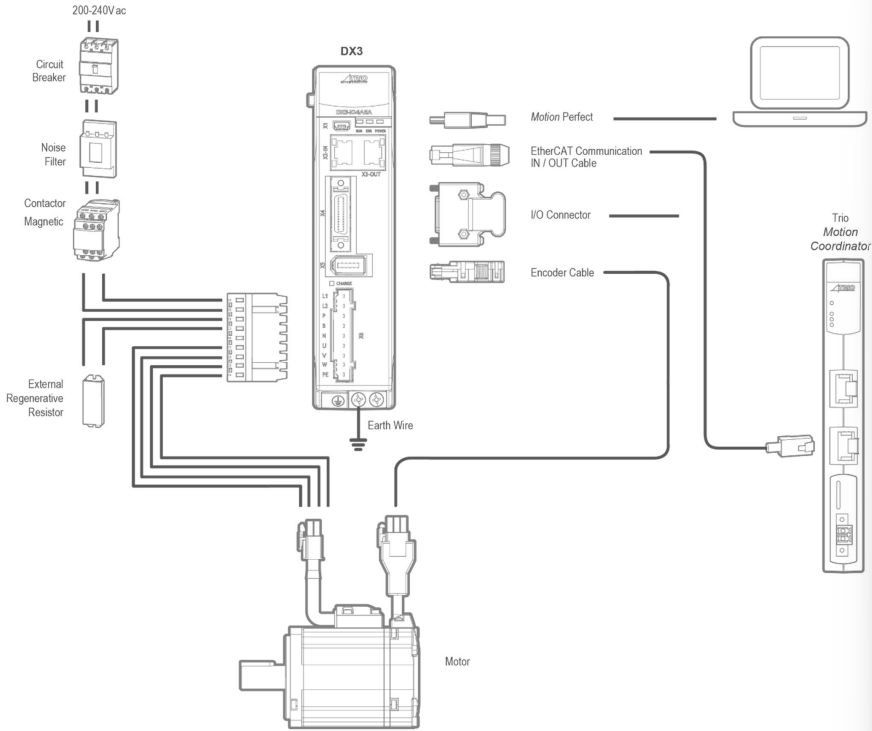

200VAC, single-phase





Rated power from 750W to 2kW.

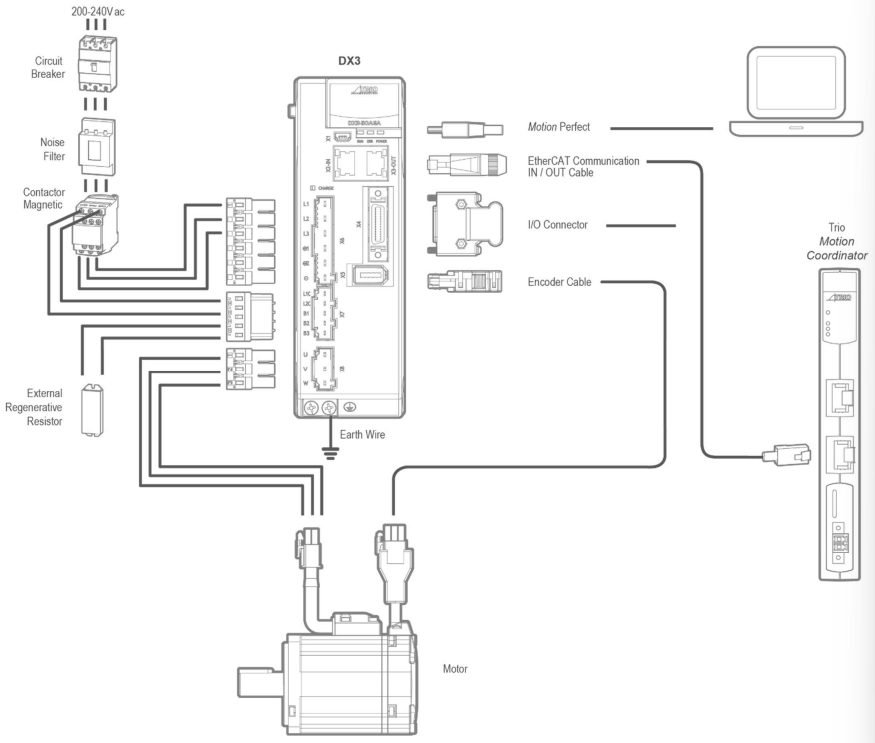

200VAC, three-phase



Rated power from 1kW to 7.5kW
400VAC, three-phase



1.7.2 Minimum System Configuration

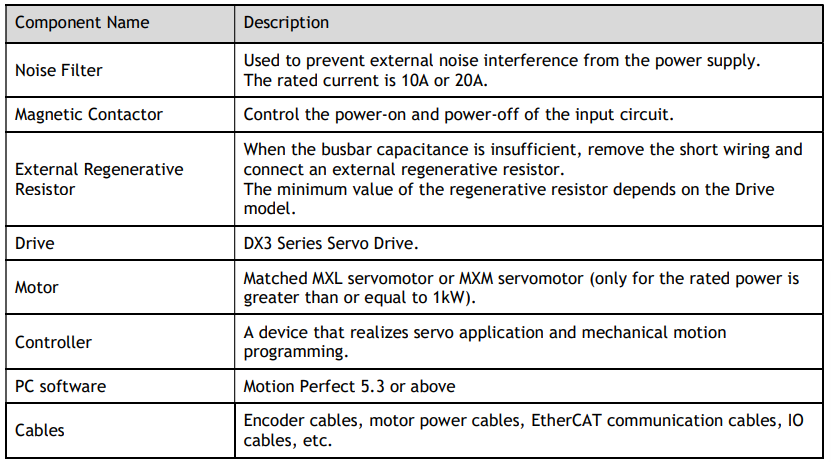

The minimum system configuration includes at least the following components

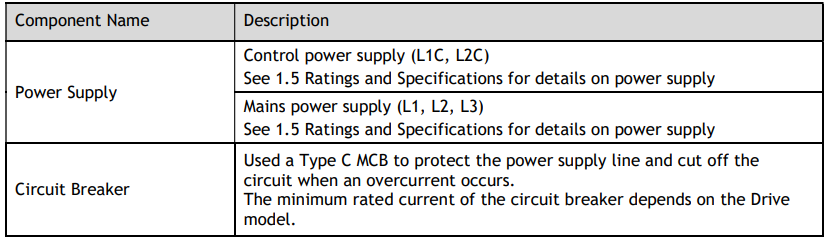

1.7.3 Peripheral Devices Specification

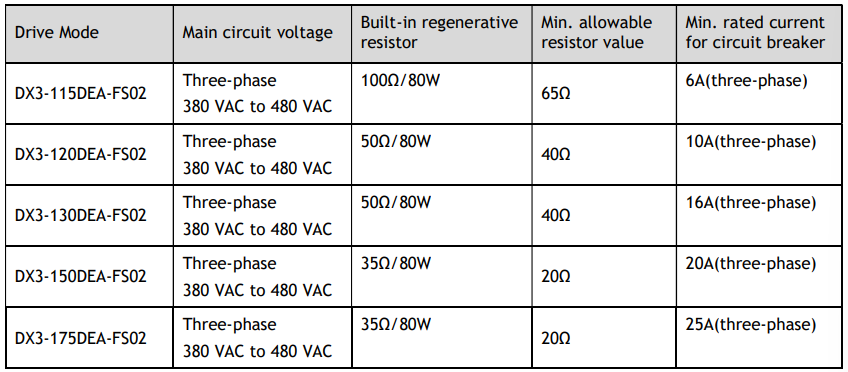

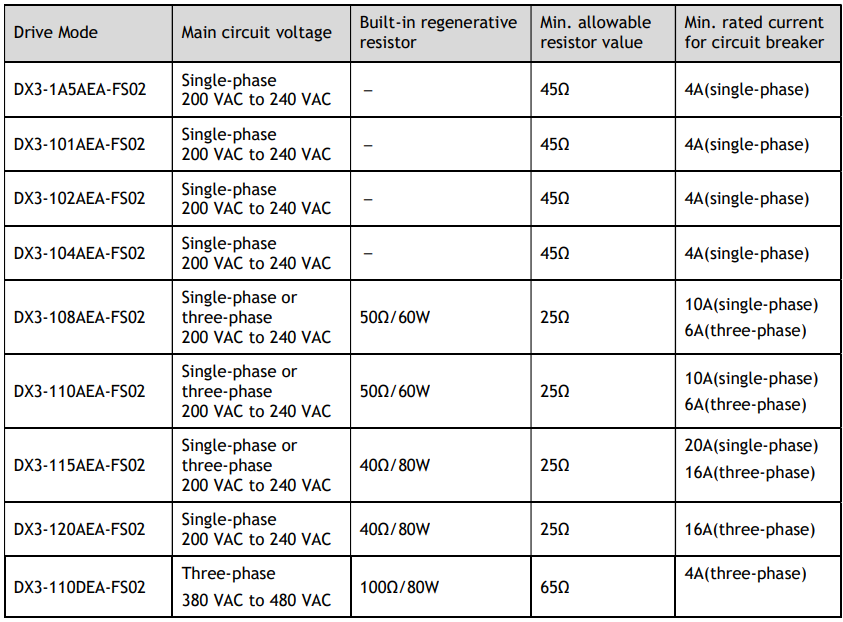

The table below shows details on regenerative resistor and circuit breaker requirements.

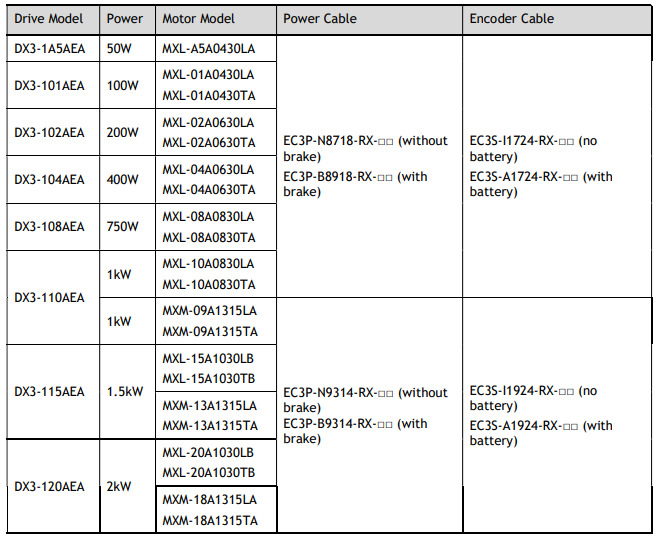

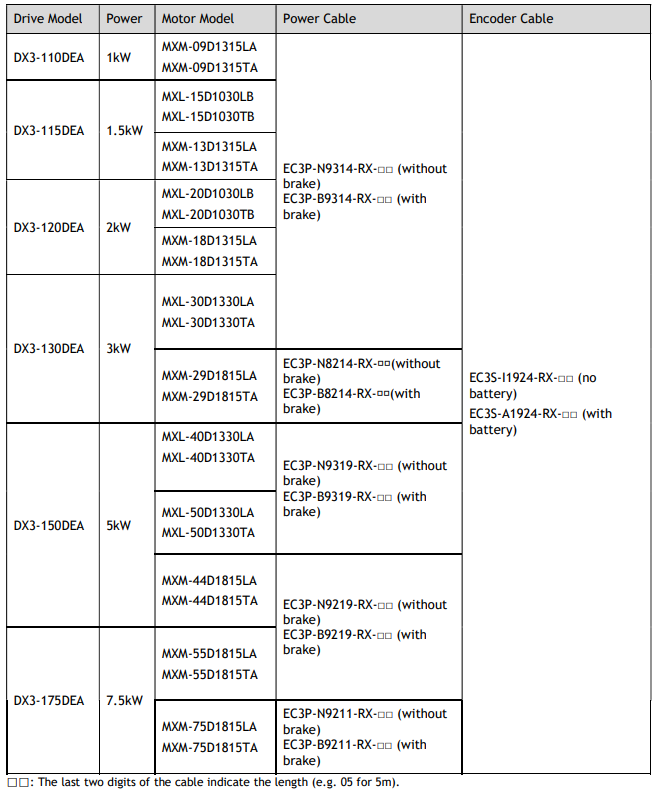

1.8 Part Numbers
