11. Alarm Displays

11.1 Alarm Classifications

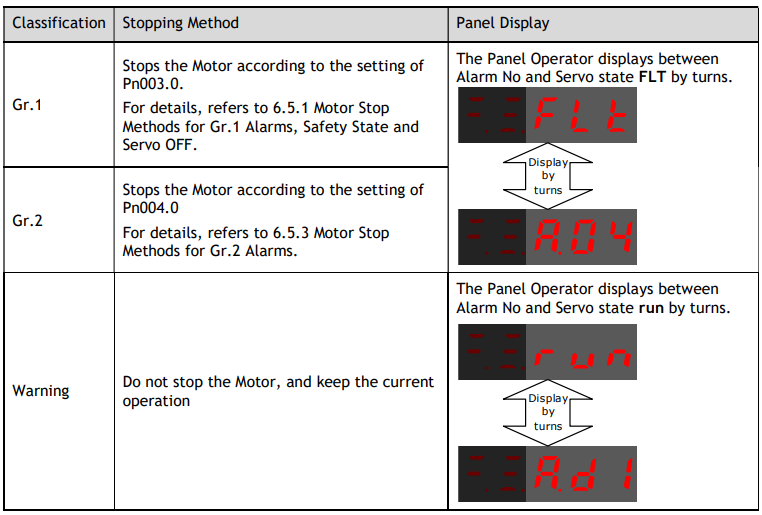

There are three classifications of alarms for the Drive: Gr.1, Gr.2, and Warning. They will affect the display and operation for the Servo System.




11.2 Troubleshooting methods
11.2.1 Gr.1 Alarm

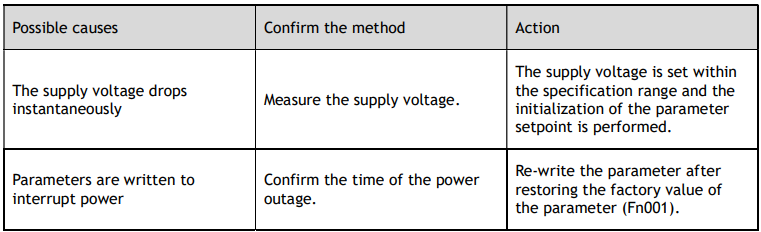

A.01:Parameter destruction

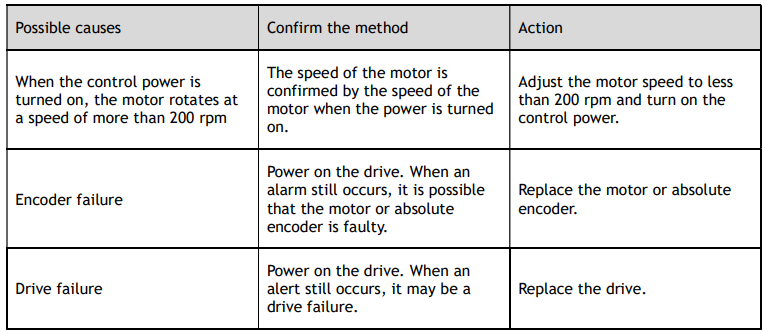

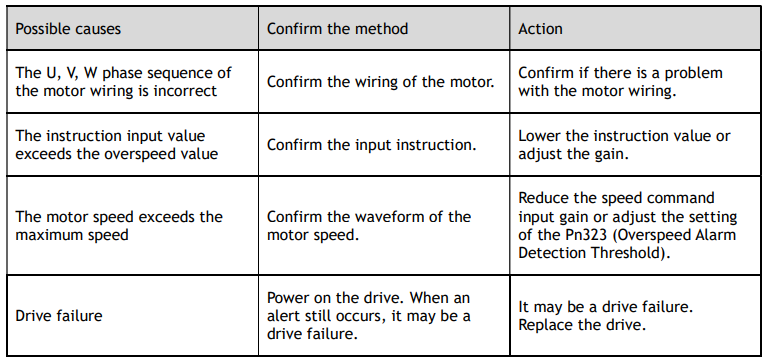

A.03:Motor overspeed

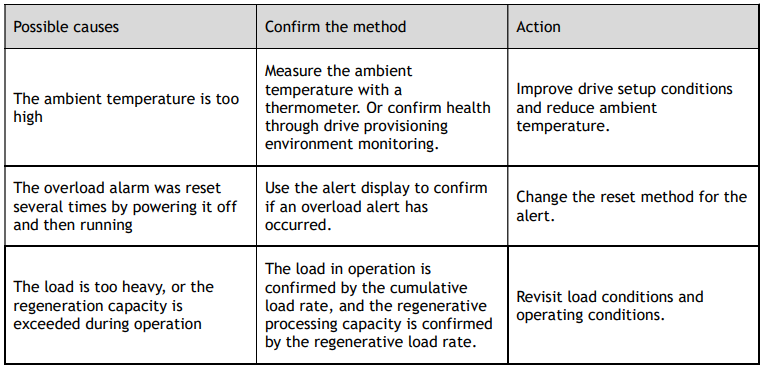

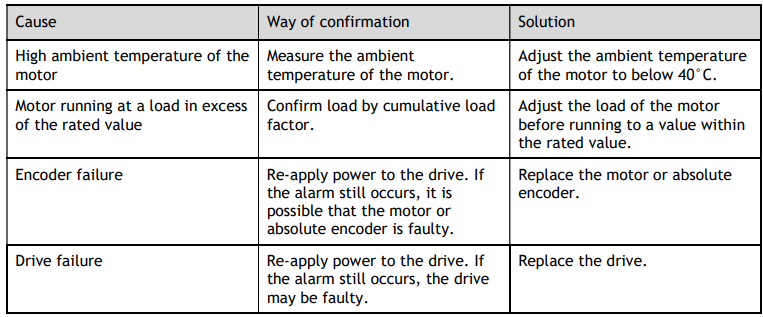

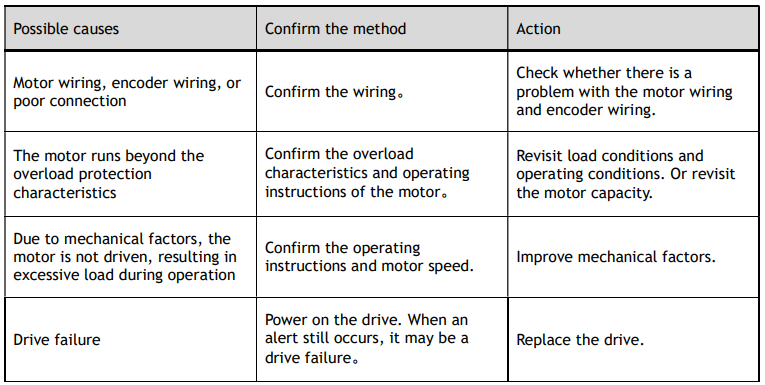

A.04:Overload

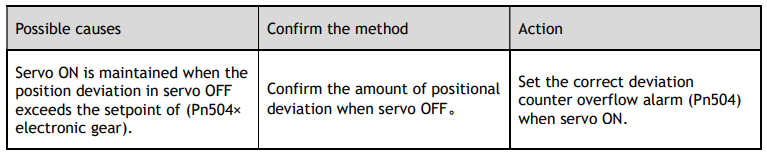

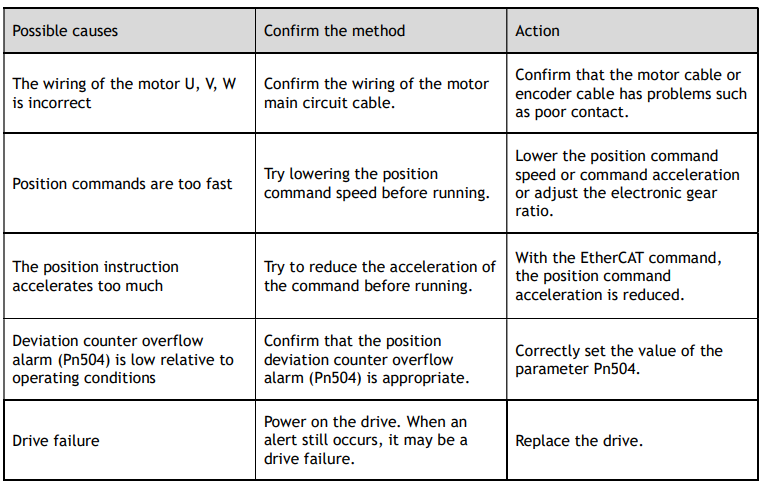

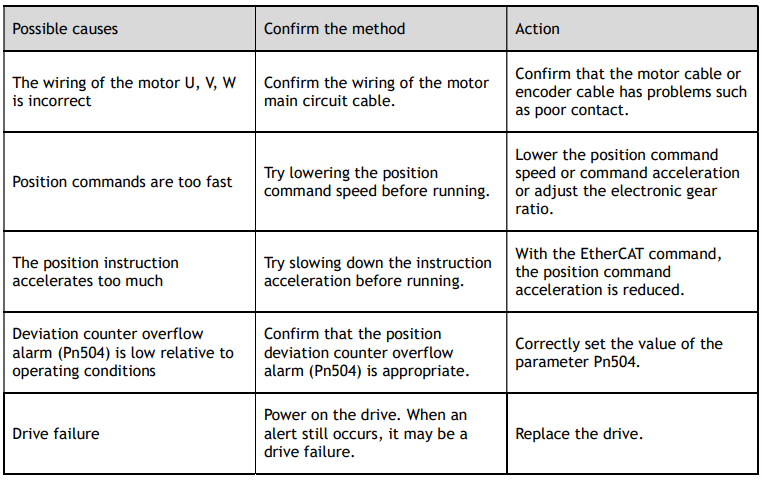

A.05:The position deviation counter overflows




A.06:The position deviation pulse overflows

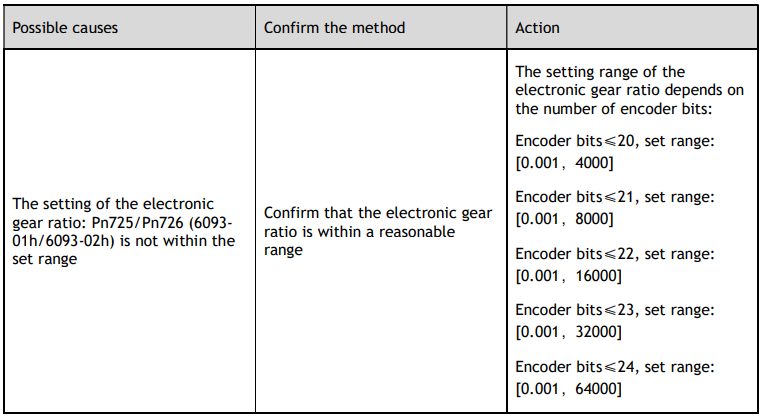

A.07:The electronic gear setting or pulse frequency is unreasonable




A.08:There is a problem with the first channel of current detection




A.09:There is a problem with the second channel of current detection

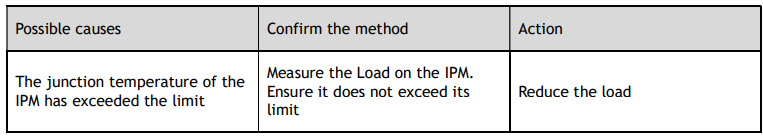

A.11:IPM Junction Overtemperature




A.12:Overcurrent





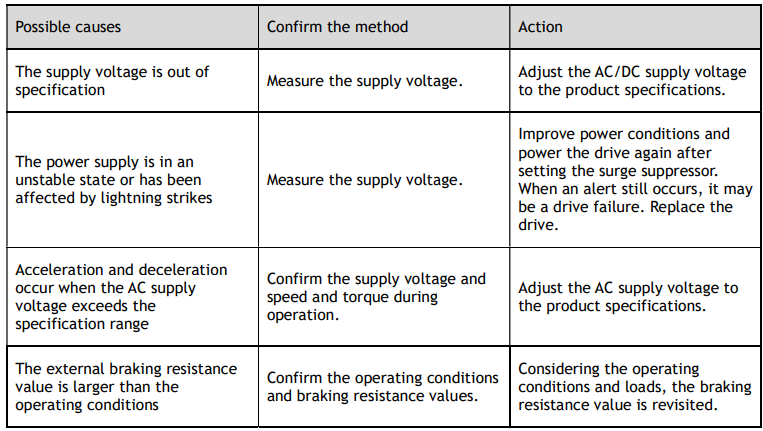

A.13:Overvoltage

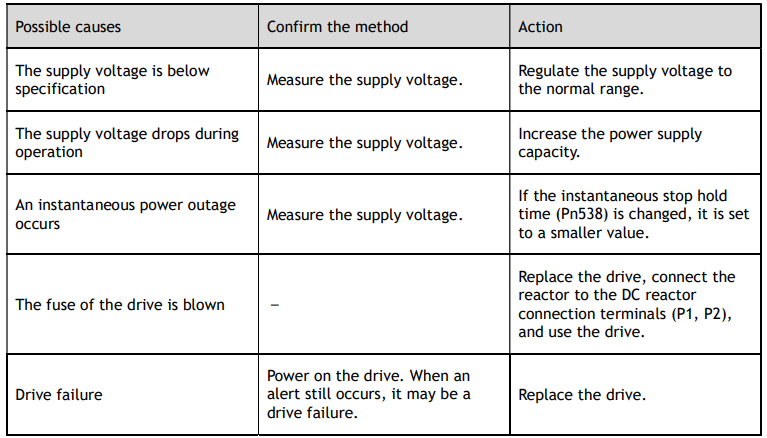

A.14:Undervoltage

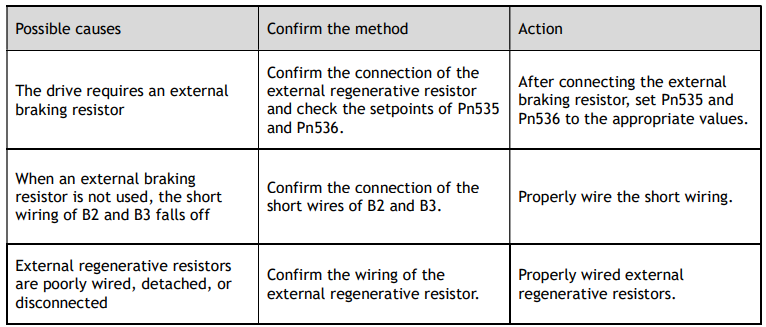

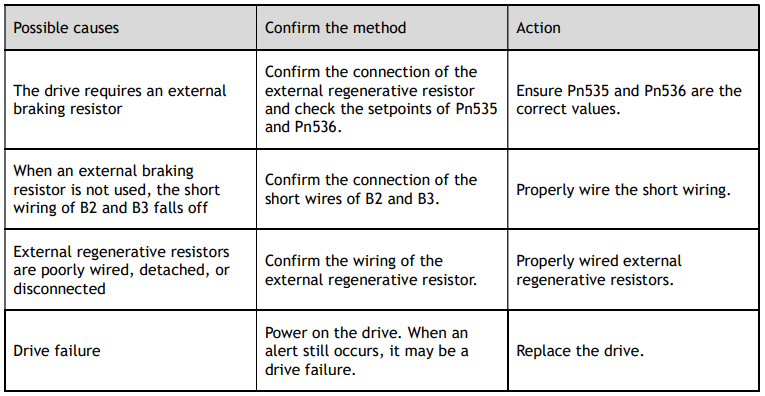

A.16:Regeneration abnormalities

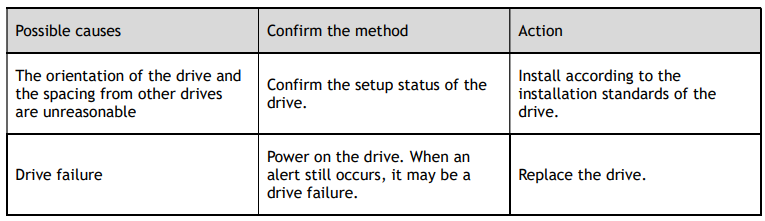

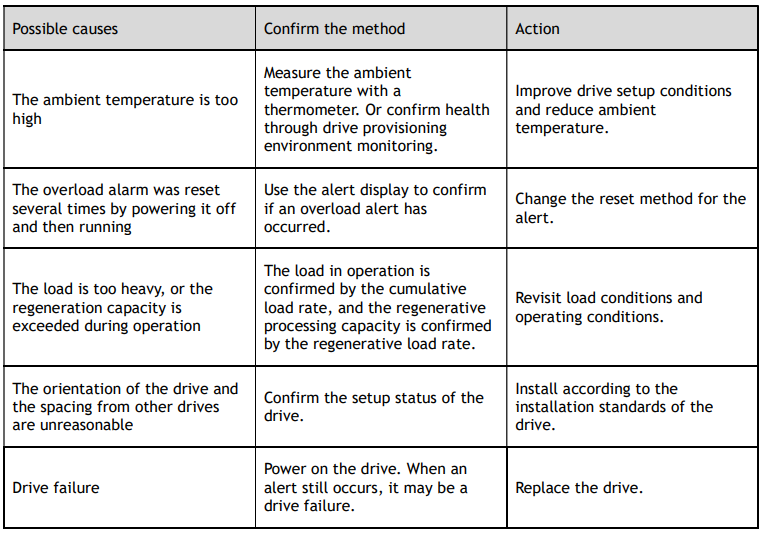

A.18:The module is overheating




A.1D:The temperature sensor is disconnected





A.1E:The main charge circuit is faulty

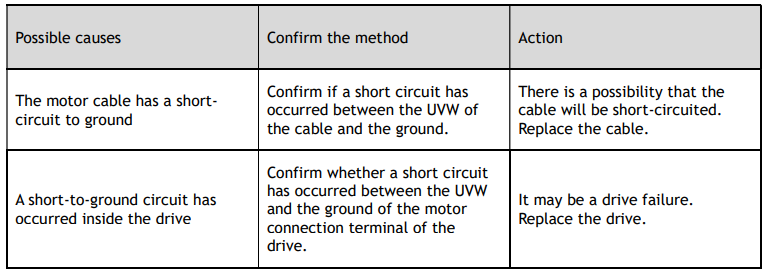

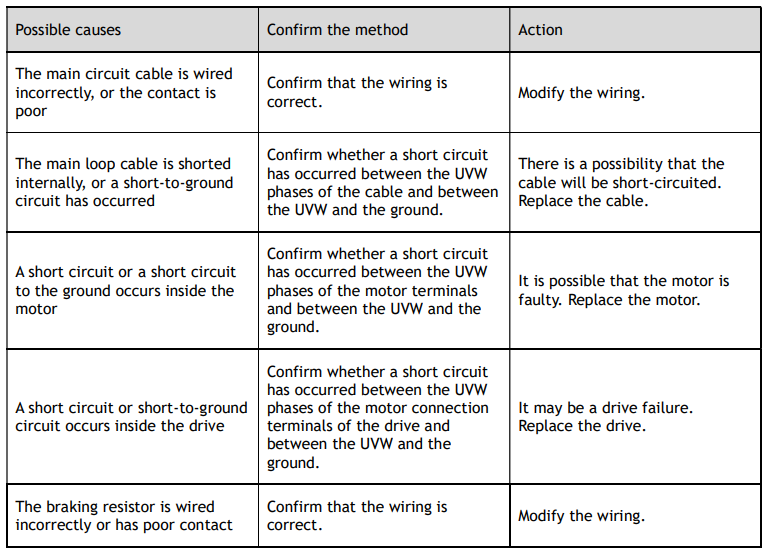

A.1F:Short-to-ground fault

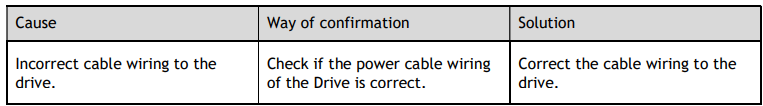

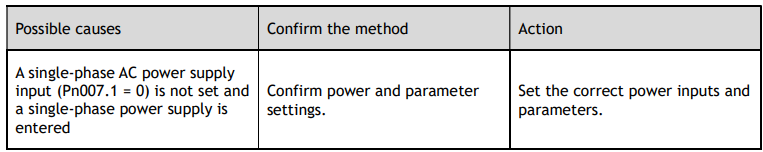

A.24:The main loop power supply is wired incorrectly




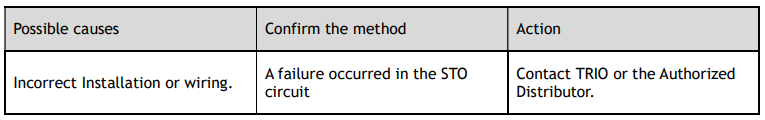

A.31:The STO Has Failed




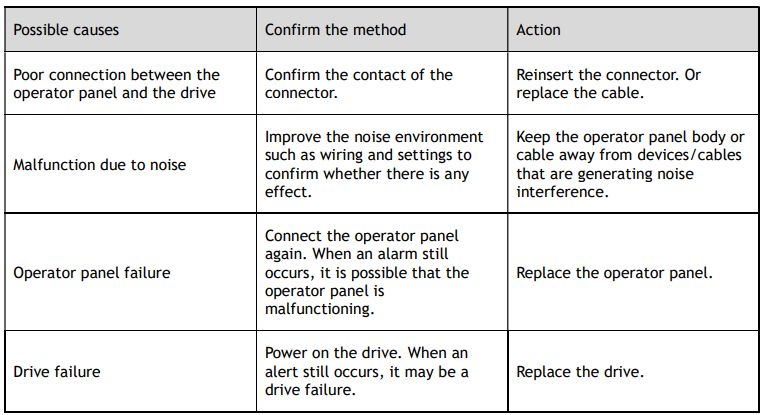

A.37:Control panel communication timed out

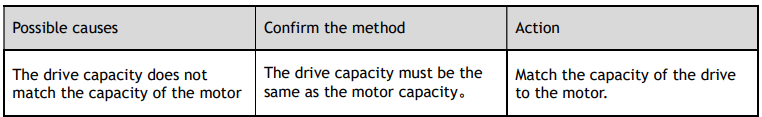

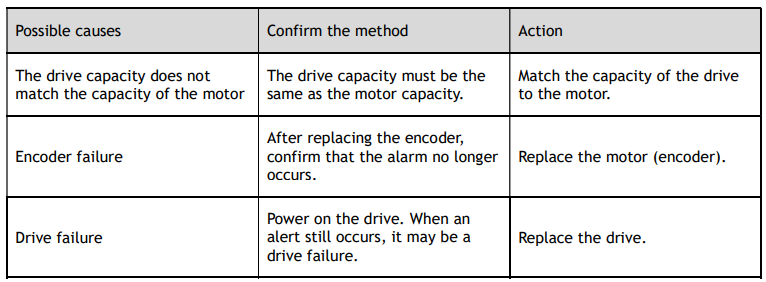

A.42:The motor power does not match the drive power




A.43:The encoder type is incorrect

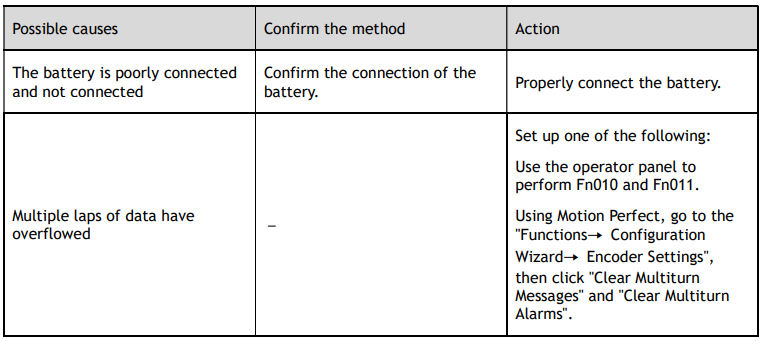

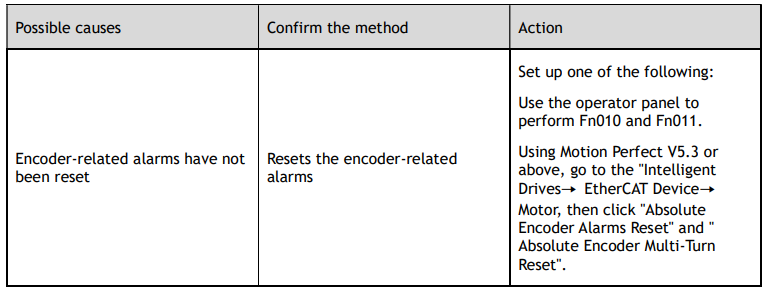

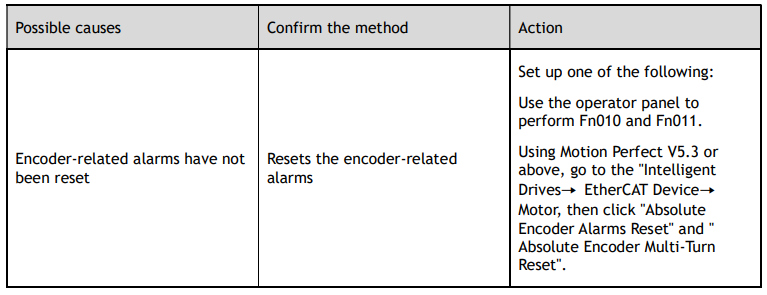

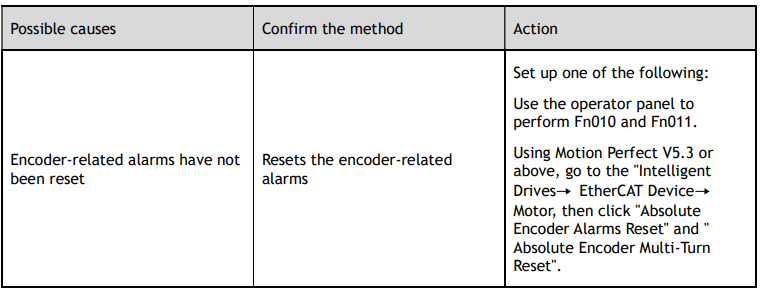

A.45:Multi-turn data error




A.46:Multi-turn data overflow

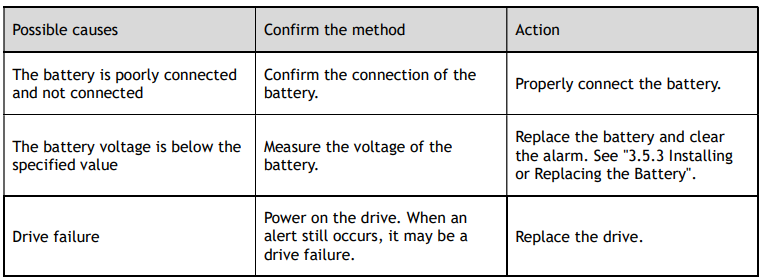

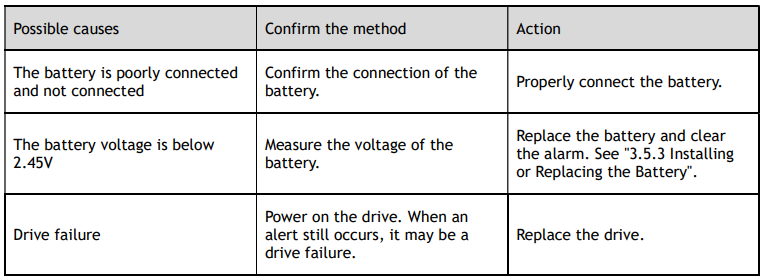

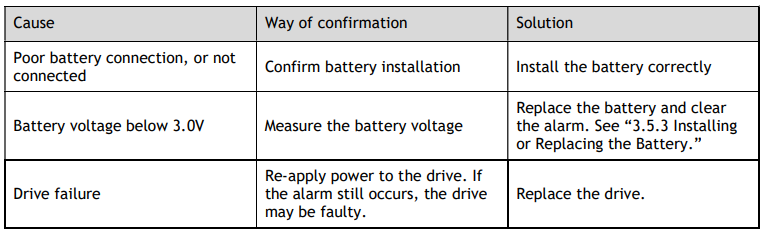

A.47:The absolute encoder battery voltage is too low




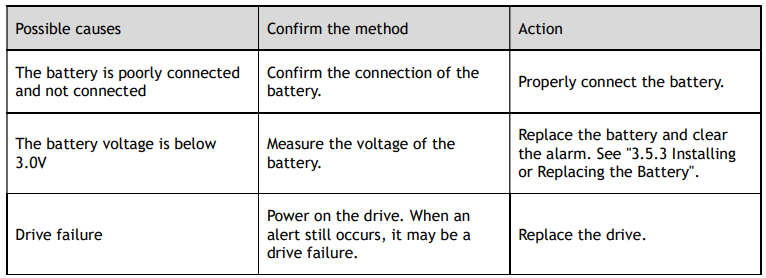

A.48:Absolute encoder battery voltage undervoltage




A.49:Multiple or single turn data anomalies were detected




A.50:The encoder is disconnected




A.51:Absolute encoder overspeed detection

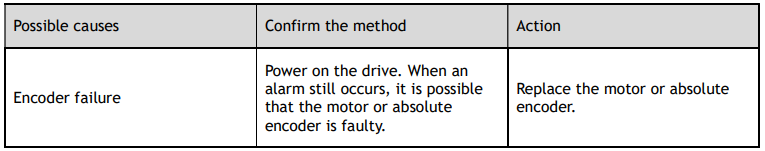

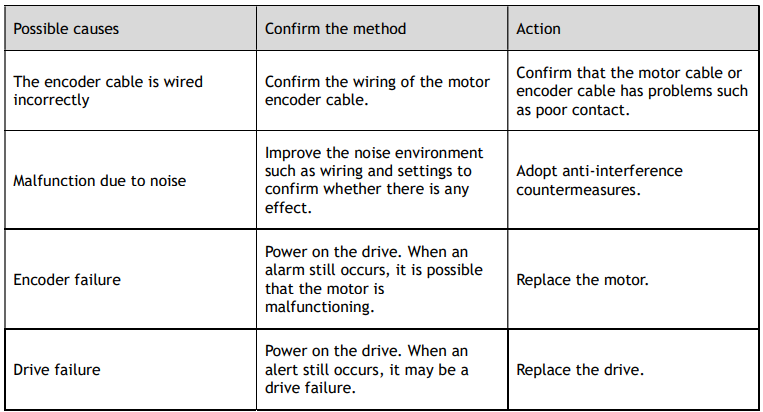

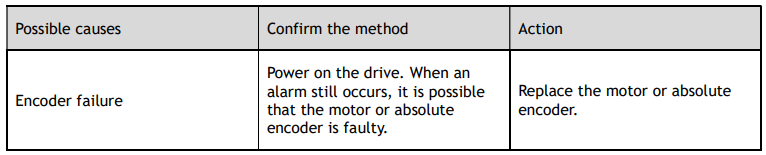

A.52:An error occurred inside the encoder




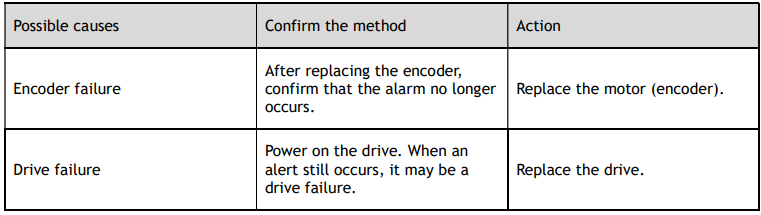

A.53:Error encoder lap information




A.54:Errors occurred at the check digits and cut-off bits in the encoder control domain




A.58:Information such as encoder zone phase is empty or incorrect




A.59:Information such as the motor body in the second area of the encoder is empty or wrong




A.65:Location overflow alarm

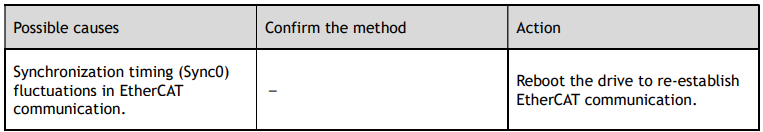

A.70:DC synchronization error




A.71:SM Event synchronization event premature




A.72:SM Event synchronization event timed out

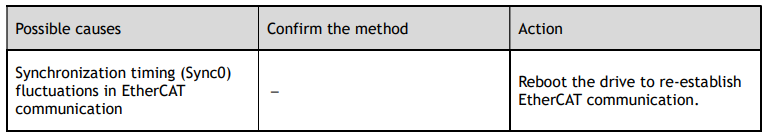

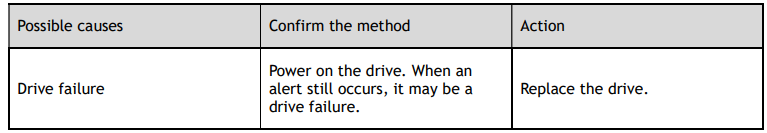

A.73:EtherCAT processor internal error




A.74:The position is set in the Cubic interpolation algorithm with a period error




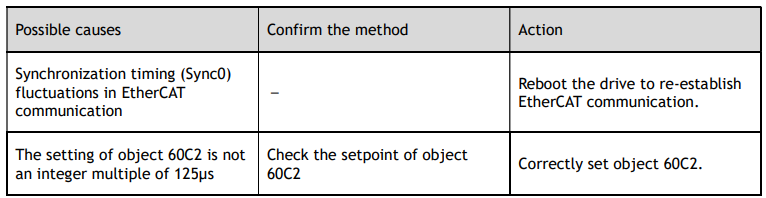

A.75:There was an error setting for the synchronization period




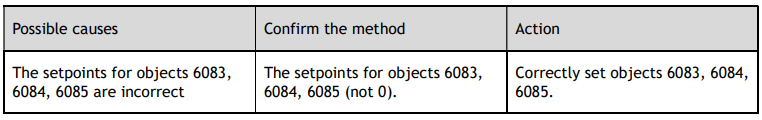

A.76:The acceleration object is set to 0 in PP/PV mode

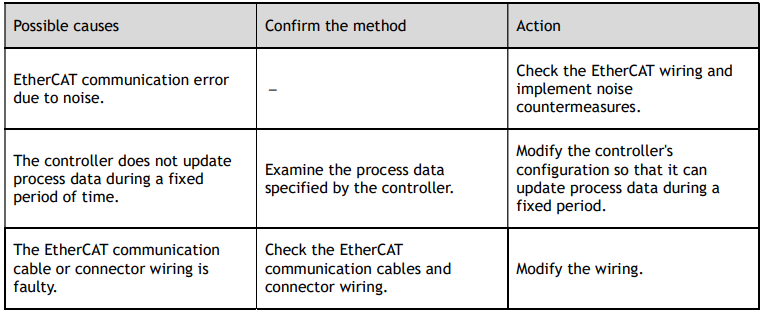

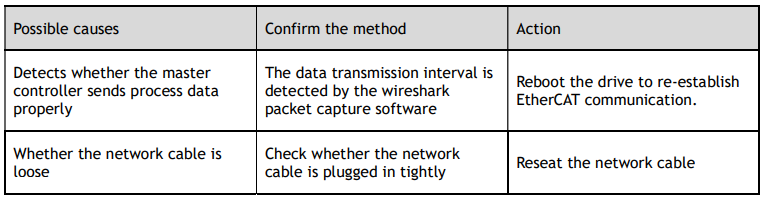

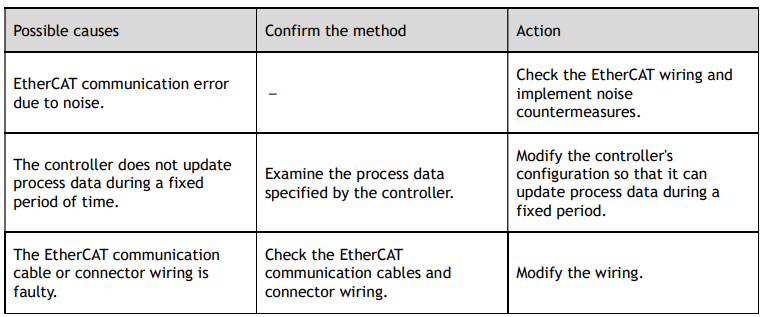

A.77:OP mode process data watchdog communication timed out




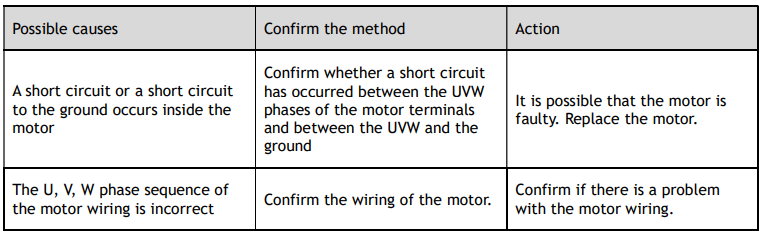

A.81:The motor UVW wiring is wrong




A.82:The motor type does not match




A.83:The motor is operating abnormally

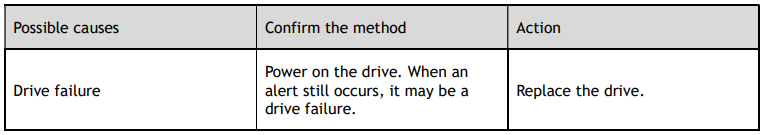

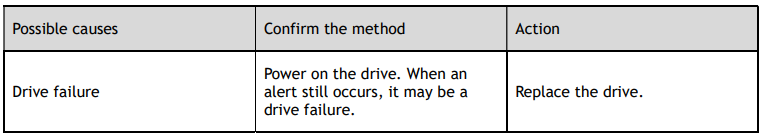

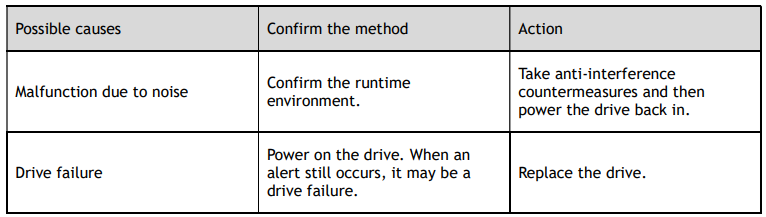

A.F0:Internal logic exceptions




11.2.2 Gr.2 Alarm

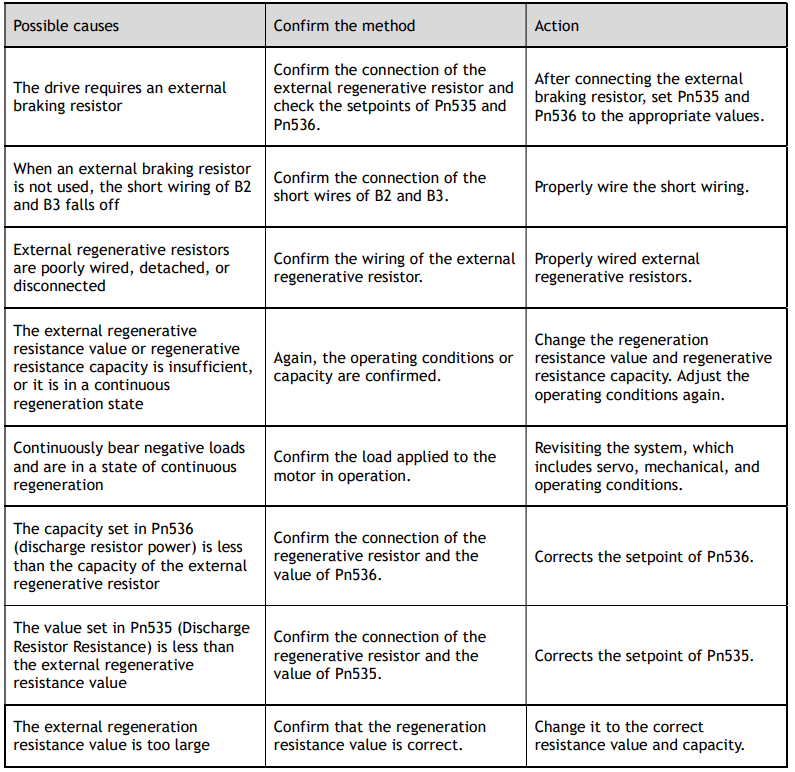

A.15:The regenerative resistance is damaged




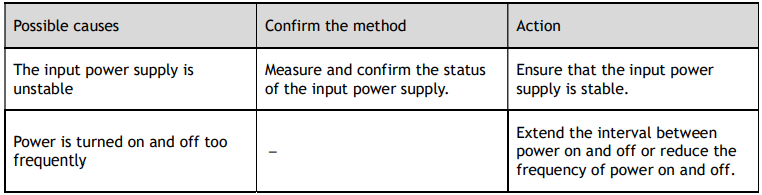

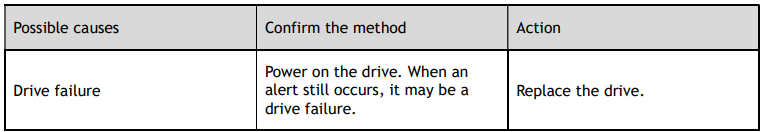

A.1A:The charging resistance is overloaded

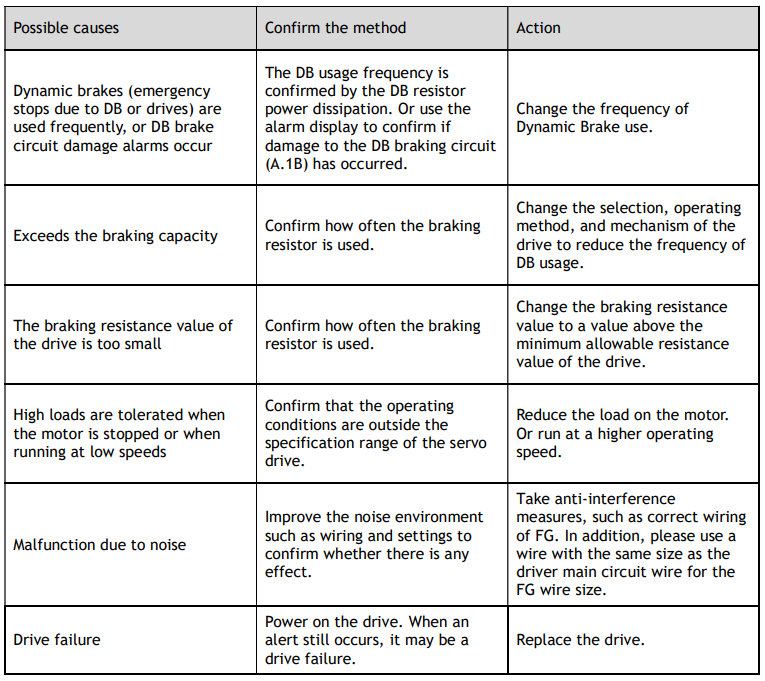

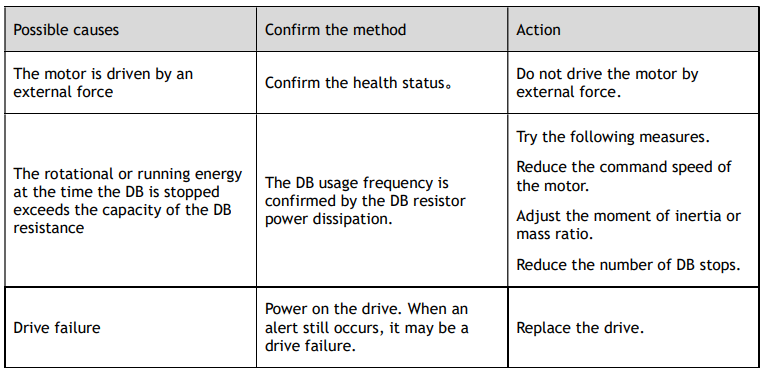

A.1B:The DB braking circuit is damaged




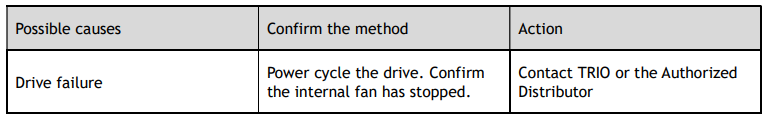

A.1C:The internal fan has failed for 30 seconds




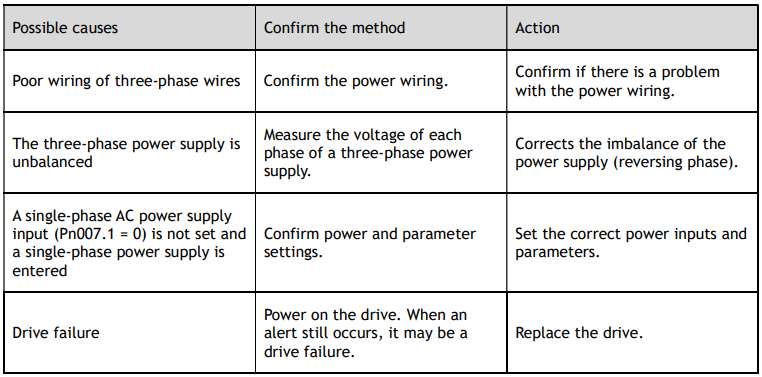

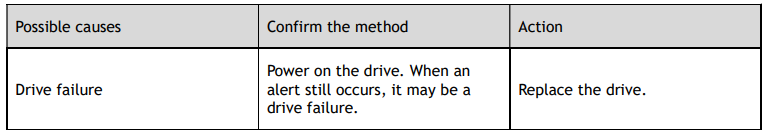

A.20:The main loop power line is out of phase




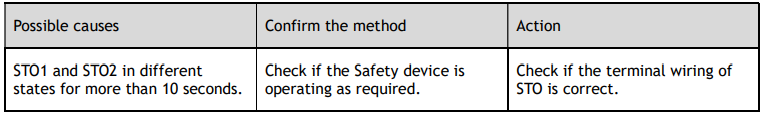

A.30:The STO is wired incorrectly




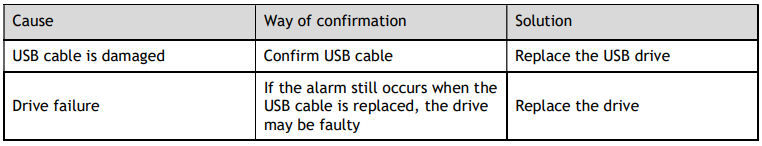

A.33: USB Power Supply Exceptions

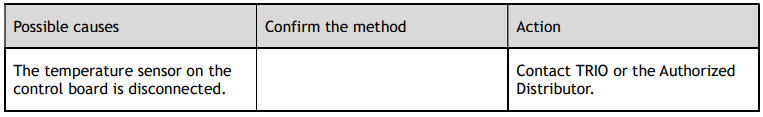

A.35: Control Board Temperature Sensor Error




A.4A: Excessive Encoder Temperature




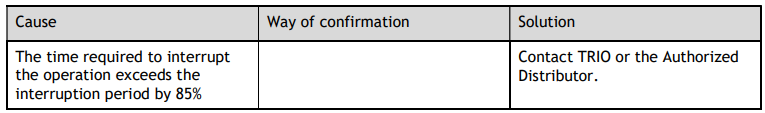

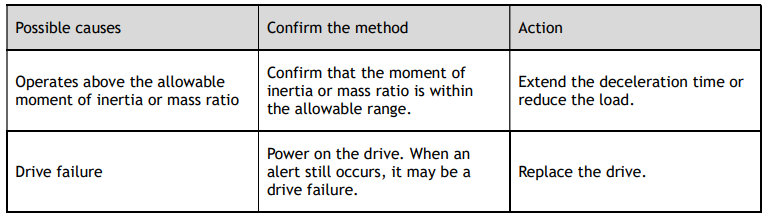

A.FA: Interrupt Overload




A.FB: CLA Overload




11.2.3 Warnings
A.4B: Absolute Encoder Battery Undervoltage (Tamagawa)




A.D1: Undervoltage Warning The main circuit DC voltage is too low





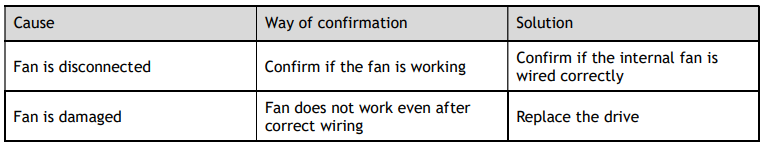

A.D5: Fan Disconnection Warning
