APPENDIX F: REGEN RESISTOR CONFIGURATION

Configure a Custom Regen Resistor

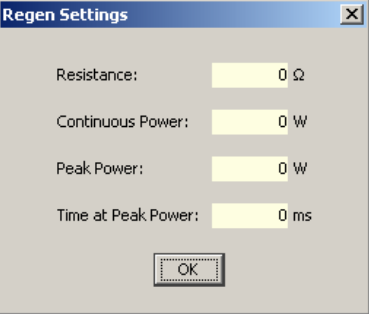

1 Click Regen Settings to open the Regen Settings screen

2 If configuring a standard Copley Controls regen resistor, select the model number and click Finish to save the configuration and close the screen.
Otherwise, continue.
3 Enter appropriate values for Resistance, Continuous Power, Peak Power, and Time at Peak Power.
4 Click OK to save the configuration and close the screen.
